3.17. Install the Hopper Latch Hardware
Table 11. Latch Hardware
Item
Description
1
1/4" x 3/4" Carriage Bolt (GR2)
2 Spacer
3
Tension Latch Clamp
4
1/4” Serrated Hex Flanged Nut (GR5)

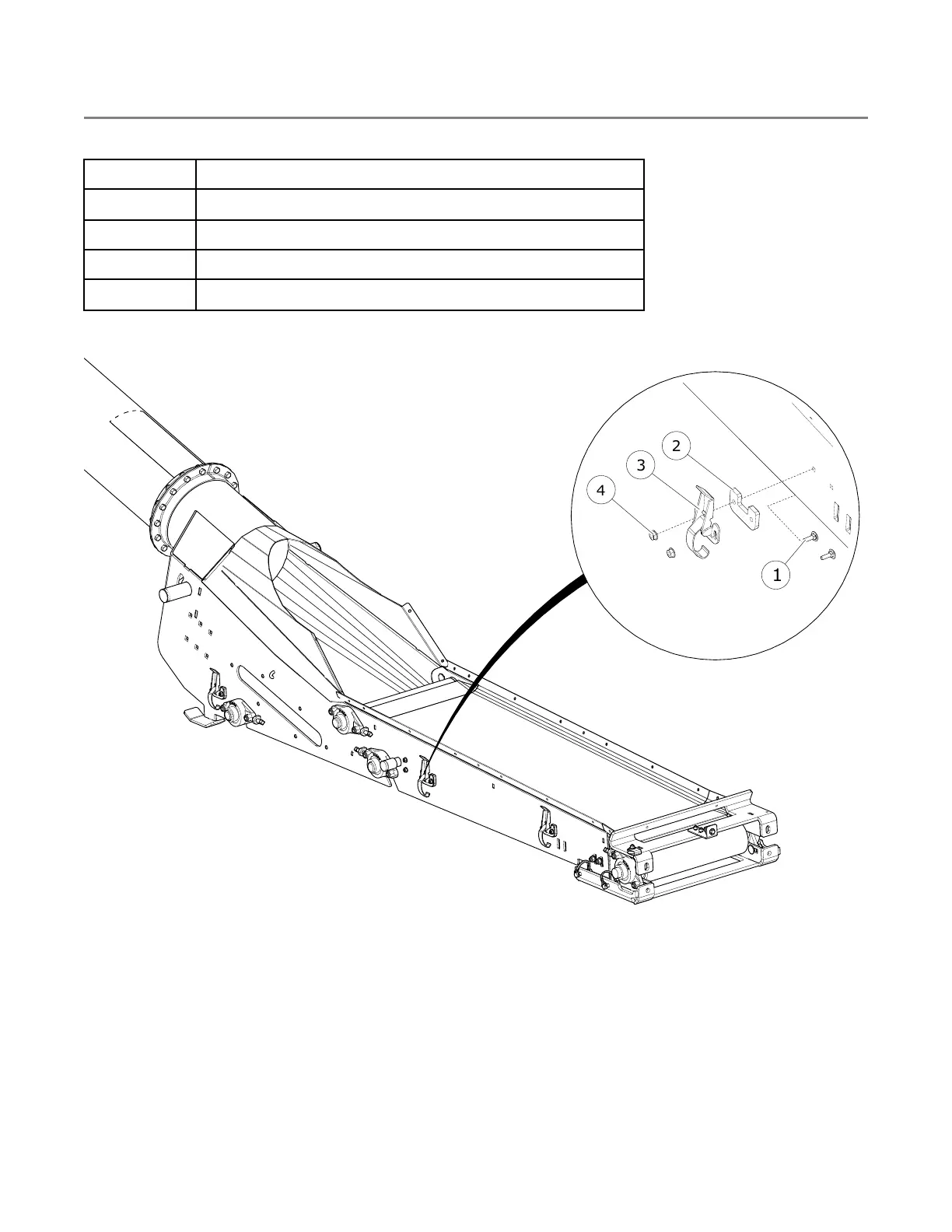

Figure 24. Installing the Latch Hardware
1
2
3
4
