AGI BCX3 1549 - Attach the Spout Scraper

8210-00020 R1 29

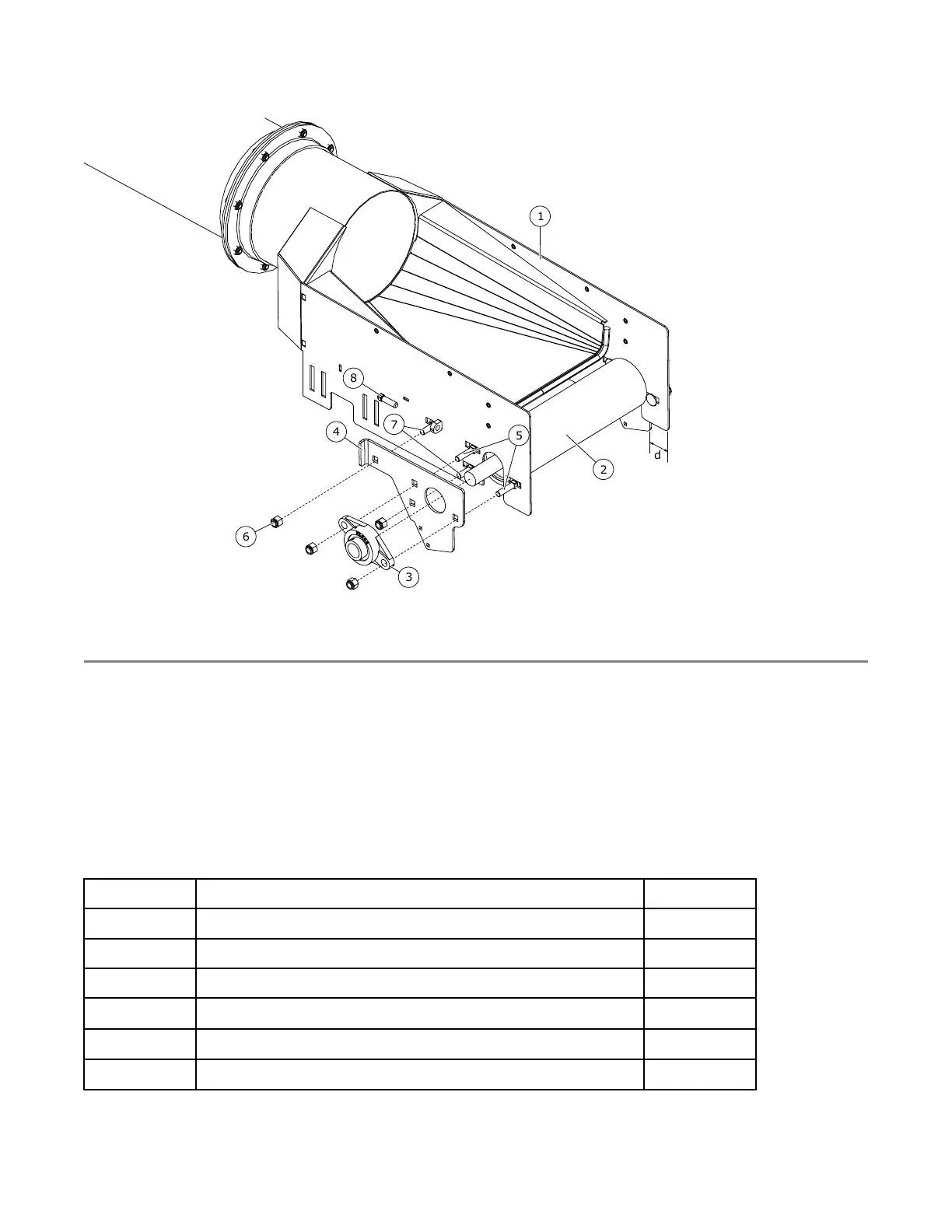

Figure 15. Installing Spout Roller
1
8
2
7
5
4
6
3
d
3.11. Attach the Spout Scraper
1. Attach the urethaned scraper (1b) to the scraper mount (1a) with 3/8" x 1-1/4" bolts (2), 3/8" flat washers
(3), and 3/8" locknuts (4), see Figure 16.
2. Insert the spout scraper assembly (1) into the spout weldment. Position at the top section of the slot and
secure in place with 3/8" x 1-1/4" bolts (2), 3/8" flat washers (3), and 3/8" locknuts (4), see Figure 17.
Note
Final position of the spout scraper assembly will be adjusted after the belt is installed. See Section
3.32 – Adjusting the Hopper and Spout Scraper on page 125.
Table 5. Spout Scraper Components
Item
Description Quantity
1
Spout Scraper Assembly
1
1a Scraper Mount 1
1b Urethaned Scraper
1
2
3/8" x 1-1/4" Carriage Bolt (GR5)
7
3
3/8" Flat Washer
7
4
3/8" Nylon Locknut (GR8)
7
Hardware Kit: HRDW-15-98
