20 8210-00020 R1

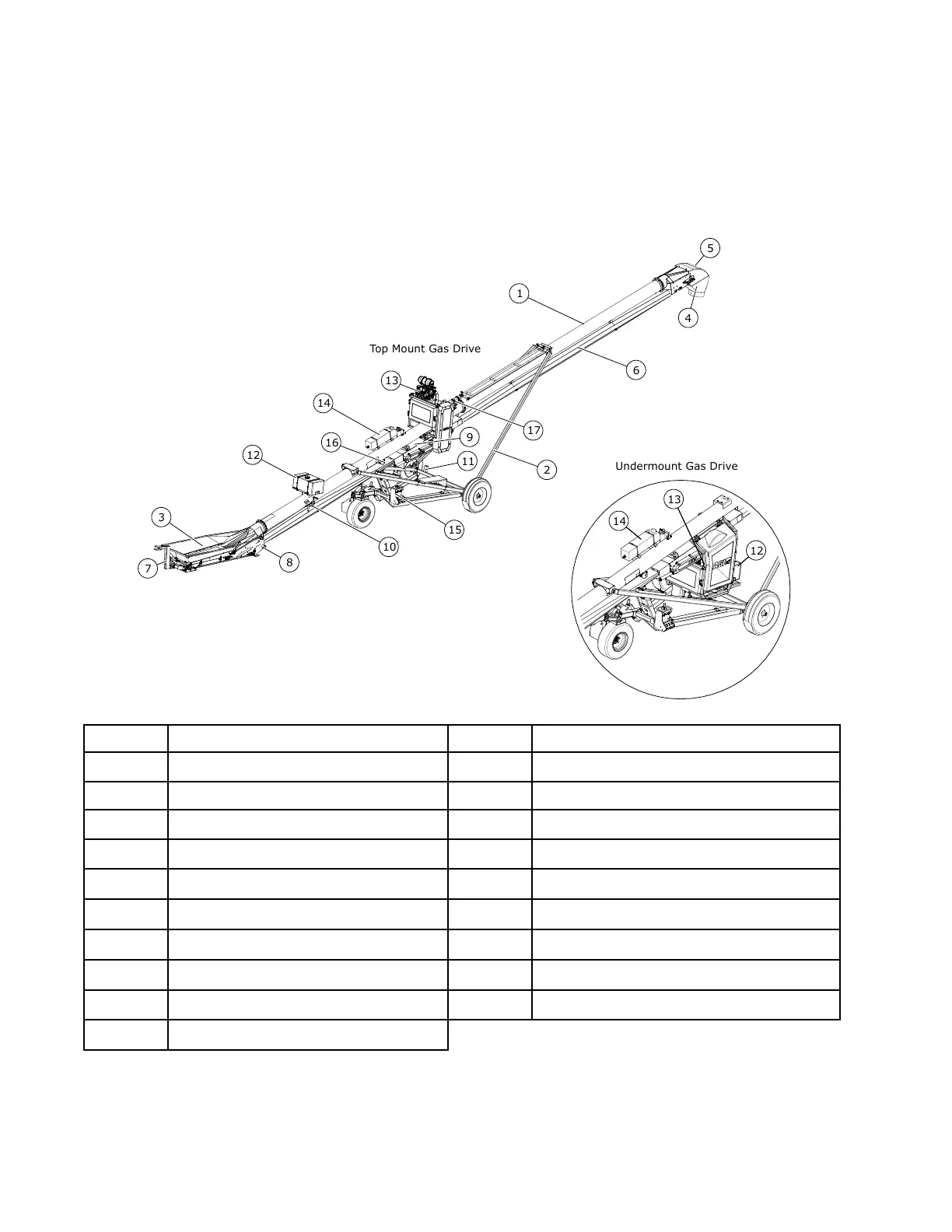

2. Features
Read this section to familiarize yourself with the basic component names and functions of the
conveyor.
5
4
1
6
11
2
13
17
Top Mount Gas Drive
9
14
16
15
12
10
8
3
7
Undermount Gas Drive
12
13
14
ITEM DESCRIPTION ITEM DESCRIPTION
1
Tube
11
Hitch Tongue Holder
2
A-Frame
12
Gas Tank
3
Hopper
13
Gas Drive
4
Hood
14
Hydraulic Oil Tank
5
Spout Assembly
15
Mover Kit
6
Belt Return and Weather Guard
16
Angle Indicator
7
Hitch
17
Hydraulic Winch
8
Jack Mount Collar
18
Hopper and Spout Scrapers (not shown)
9
S-Drive
19
Jack (not shown)
10
Collapsible Hopper Control
2. FEATURES FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
