3.27. Install the Collapsible Hopper Cloth Controls
Install the Handle
1. Attach the hopper handle (1) to the handle mount using a 3/8" x 1-1/2" bolt (2), 3/8" plastic flat washer (3),
and two 3/8" hex nuts (4) (see Figure 50).
Note
Ensure the handle can pivot after tightening the bolt.
Table 17. Handle Components
Item
Description
1
Hopper Handle
2
3/8" x 1-1/2" Hex Bolt (GR8)
3
3/8" Plastic Flat Washer
4
3/8" Hex Nut
Hardware Kit: HRDW-15-82

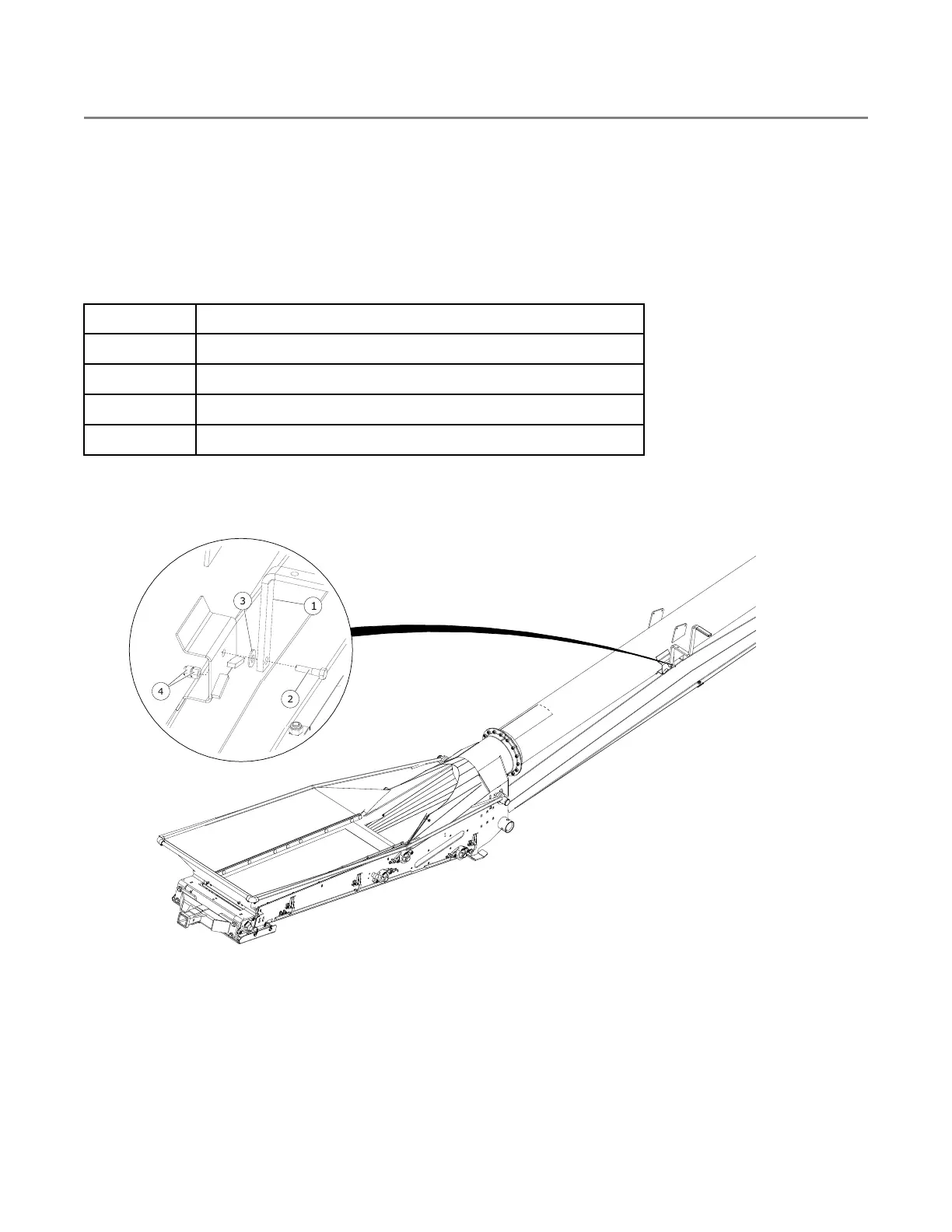

Figure 50. Installing the Handle
1
2
3
4
