3.28. Attach the Angle Indicator
Attach the angle indicator bracket (1) to the weather guard bracket using plate (2), 1/4" x 3/4" carriage bolts (3)
and 1/4 flanged nuts (4). See Figure 54.
Important
Ensure that the angle indicator base is level with the flat top of the weather guard.
Table 20. Angle Indicator
Item
Description
1
Angle Indicator Bracket
2
Plate
3
1/4" x 3/4" Carriage Bolt
4
1/4” Flanged Nut

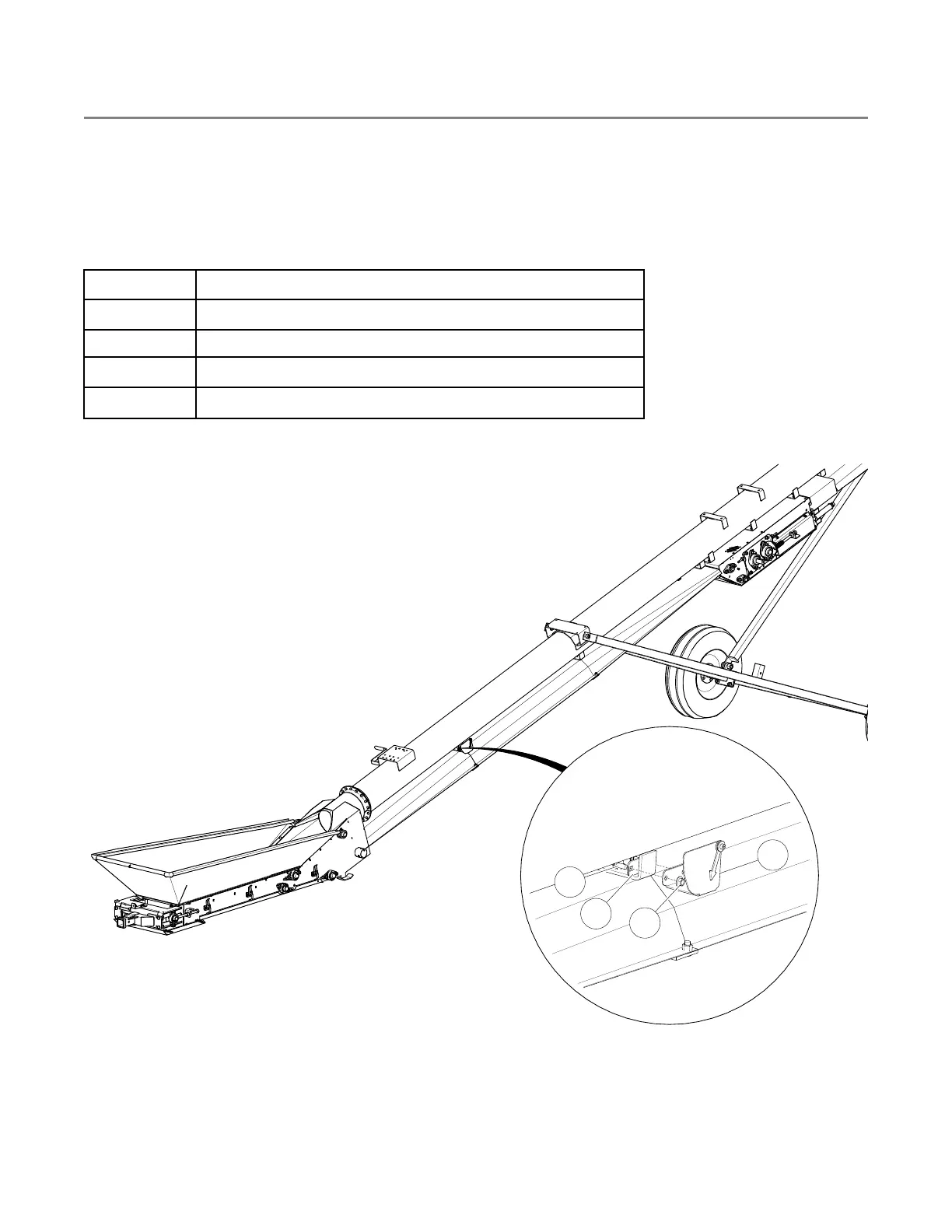

Figure 54. Installing the Angle Indicator
1
2
3
4
