26 8210-00020 R1
3.8. Brand and Model Decal Placement
Important
Do not cover any existing safety or instruction decals with the brand and model decals. Also make sure
the decals do not interfere with any welded-on brackets or tube flanges.
• The decals should be placed as follows (see Figure 10):
– AGI Decal (both sides of the tube): place at the top of the tube, next to the spout.
– Brand Decal (both sides of the tube): place mid to low tube, where it is visible and not covered by frame
arms/trussing/brackets.
– Model Decal (both sides of the tube): place mid tube, between the “AGI” and the brand. Ensure it is not
covered by frame arms/trussing/brackets.
Examples of the appearance of brand and model decals are in Figure 12, Figure 13 and Figure 11.

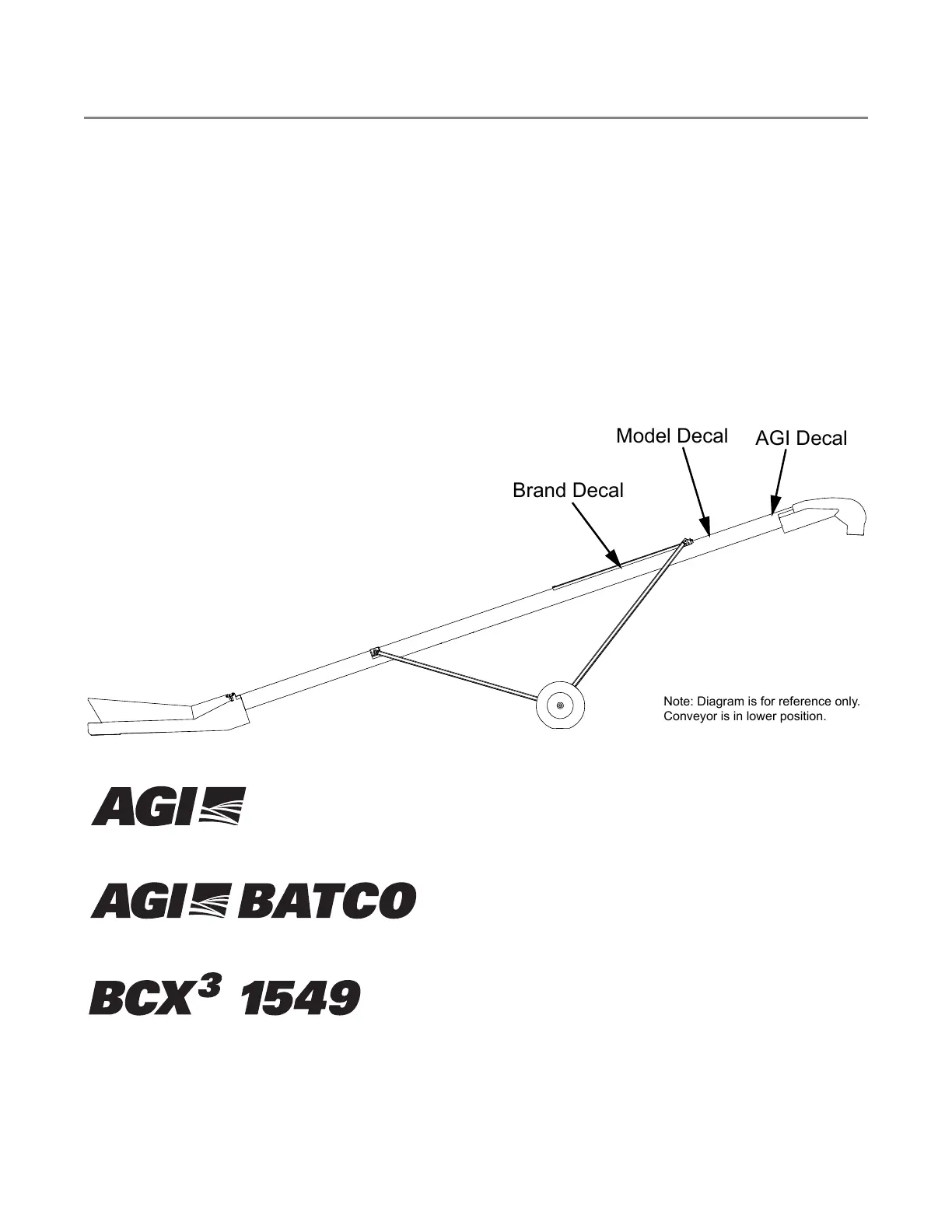

Figure 10. Brand and Model Decal Placement
Note: Diagram is for reference only.
Conveyor is in lower position.
Figure 11. AGI Decal
Figure 12. Brand Decal (example)
Figure 13. Model Decal (example)
• Apply decals to both sides of conveyor tube.
• For each decal:
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
