3.36. Align the Winch
This procedure describes the alignment of the winch.
1. Check the alignment of the winch by watching the cable wrapping on the drum as the conveyor is raised.
Proper alignment is achieved when the cable indexes, filling each row on the drum evenly and not piling up
against one side.
2. Lower the conveyor fully if the cable does not index properly until there is slack in the cable.
3. Loosen the bolts holding the winch, adjust the winch, re-tighten bolts and retest.
3.37. Install the Tank Kit and the Primer Bulb

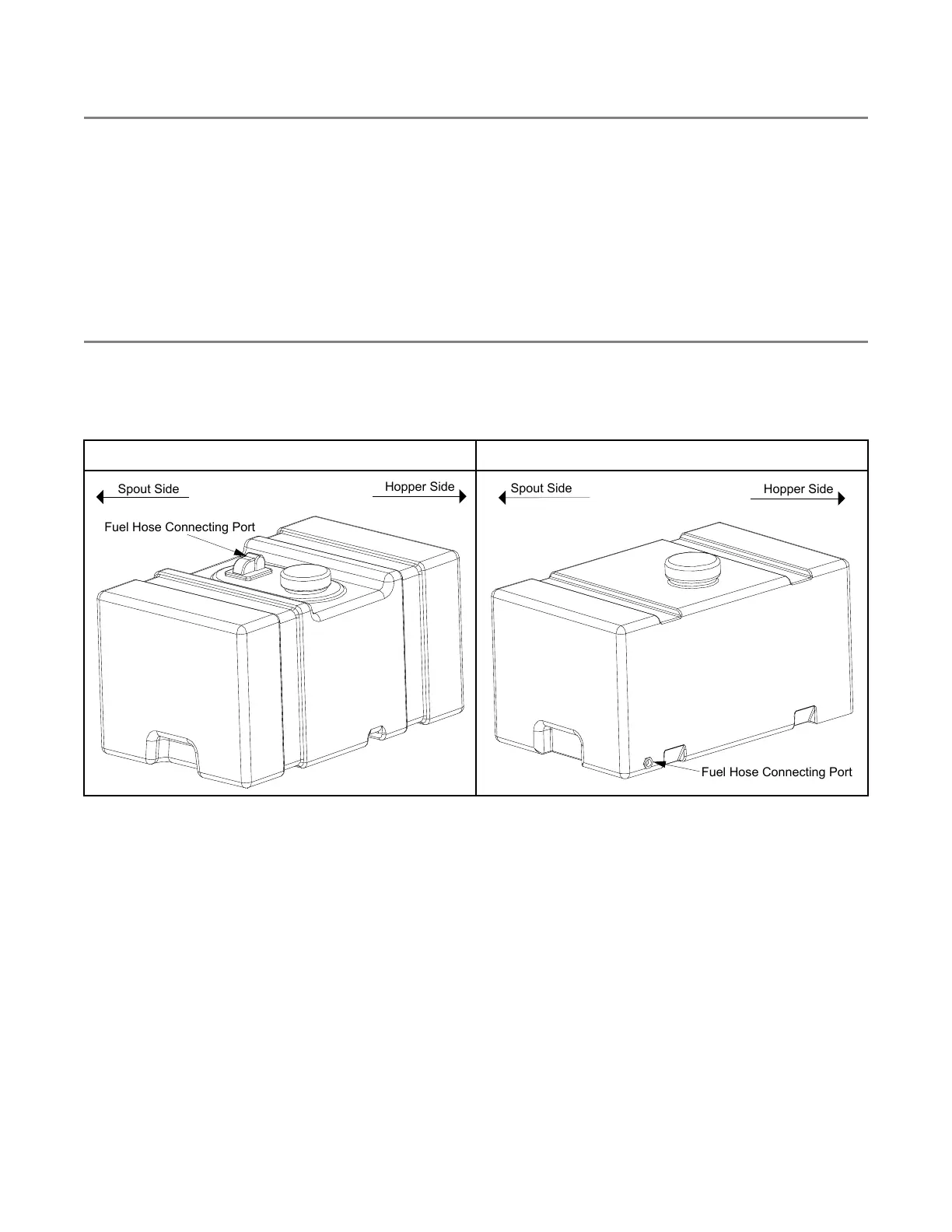

Depending on the region two different versions of tank kit are provided with the conveyors. The size and shape
of the fuel tank can vary depending on the conveyor series. Examples of gas tank are shown in Figure 64 below:
Figure 64. Gas Tank Type
Low Emission Gas Tank (US only) Gas Tank (Outside US)
Fuel Hose Connecting Port
Spout Side
Hopper Side
Fuel Hose Connecting Port
Spout Side
Hopper Side
