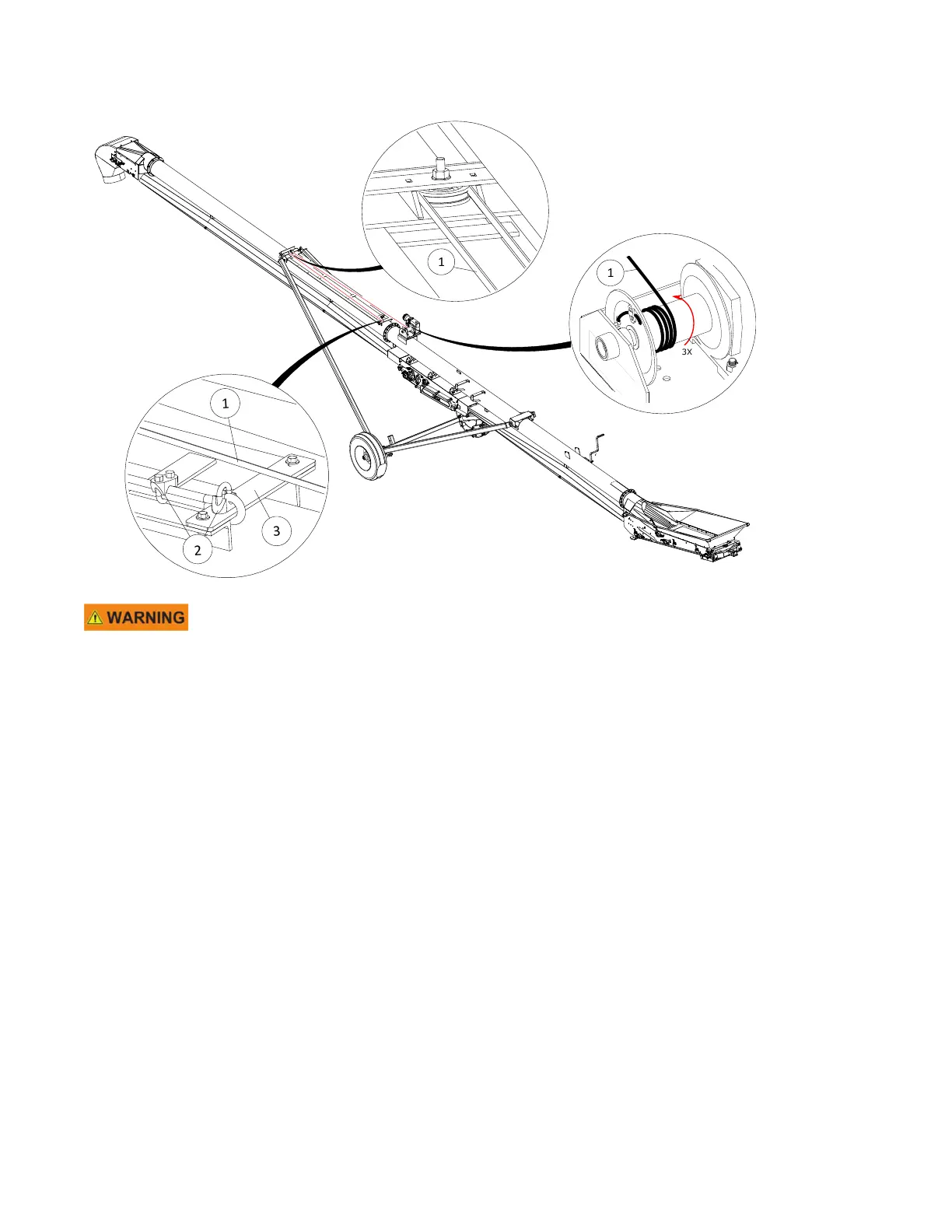

Figure 63. Installing the Tube Lift Cable
1
2
3
1
1
3X
Crushing/impact hazard
Wrap the cable at least three times around the drum while the conveyor is in the transport
position. The cable must leave the winch from the top of the drum.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
