3.37.5 Install Fuel Pump (For Top-Mount Drive)
1. Attach the fuel pump assembly to the bracket.
Important
Check the fuel pump for setup orientation for proper fuel flow direction. The arrow on the fuel
pump indicates the direction of fuel flow, which has to be from gas tank to gas engine.
2. Install the bracket with fuel pump to the gas tank mount. Ensure the fuel pump is pointing towards the
hopper. See Figure 73.
3. Connect the fuel line to the fuel pump with hose clamp. See Figure 73.

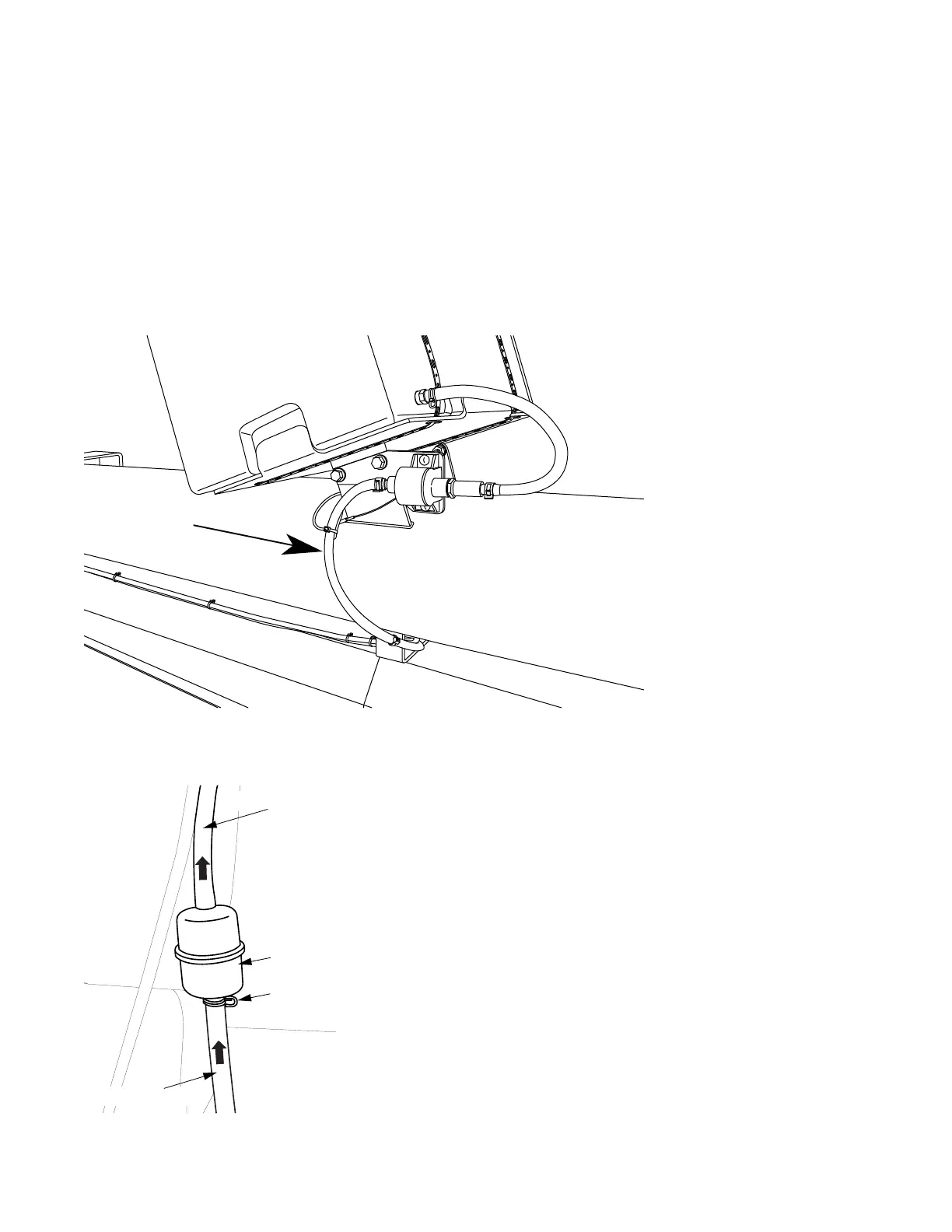

Figure 73. Hose Routing From Fuel Tank
4. Connect a fuel filter (Figure 74) using 1/4" fuel line to the fuel pump.
Figure 74. Fuel Filter
From Fuel Pump
To Gas Engine
Fuel Filter
Clamp
