92 8210-00020 R1
3.21. Attach the Hopper Seals
1. Pull the transition roller all the way back towards the hopper.
2. Press the seals as tightly as possible into the gap between the transition roller and the hopper body. Use a
rubber mallet if necessary to ensure it goes all the way in. Secure with the bolt from the bearing. See Figure
35.

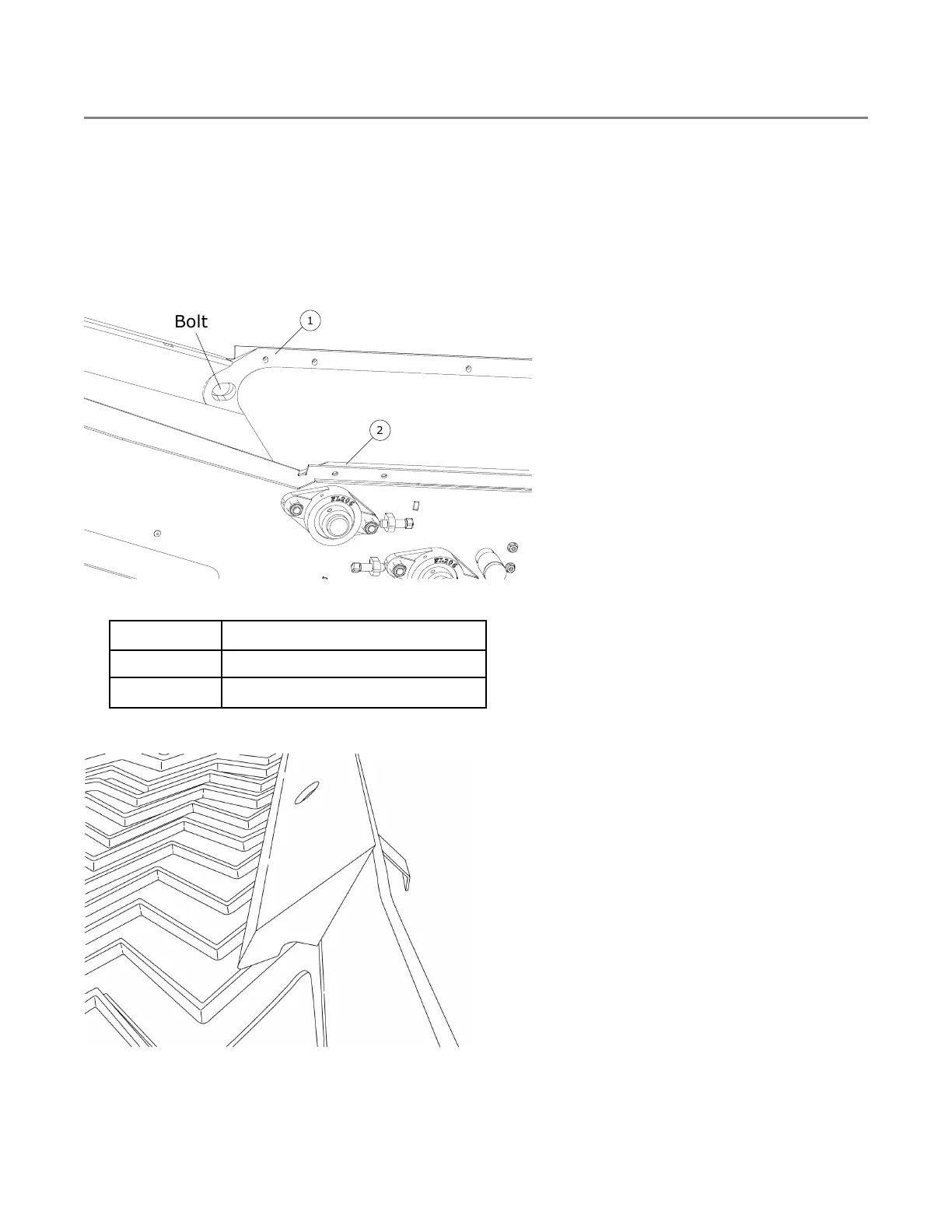

Figure 35. Hopper Seal
Table 12. Seal
Item
Description
1
Left Urethane Seal
2
Right Urethane Seal
Figure 36. Seal Orientation
Note
The edge of the belt must fit into the notch on the seal.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
