3. Cross the seal loose ends over the opposite ends of the hopper frame so that they are not interfering with
the belt.

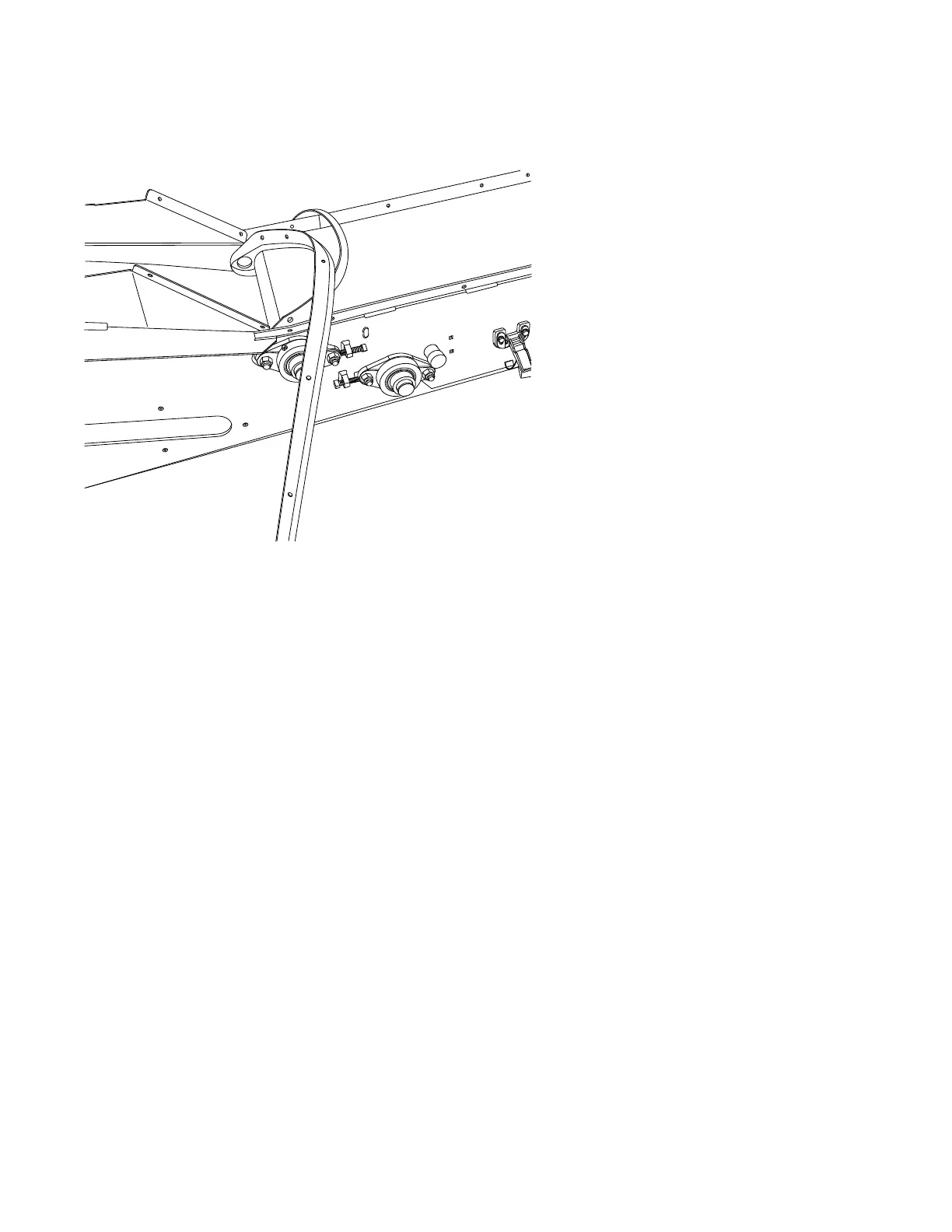

Figure 37. Hopper Seal
4. Adjust the belt tracking. Refer to Section 3.22 – Align the Conveyor Belt on page 94 for belt tracking
instructions. Run the belt for 10 minutes to properly wear in the seals. After tracking, remove any rubber
shavings.
