AGI BCX3 1549 - Attach the S-Drive Bottom and Take-up Side Guards

8210-00020 R1 113
3.25. Attach the S-Drive Bottom and Take-up Side Guards
Table 14. Parts Required to Attach S-Drive Bottom Guards
Item
Description
1 S-Drive Lower Bottom Cover
2 S-Drive Upper Bottom Cover
3
1/4" x 3/4" Hex Bolt (GR5)
4
1/4" Lock Washer
5
1/4" Flat Washer
Hardware Kit: HRDW-15-44x2

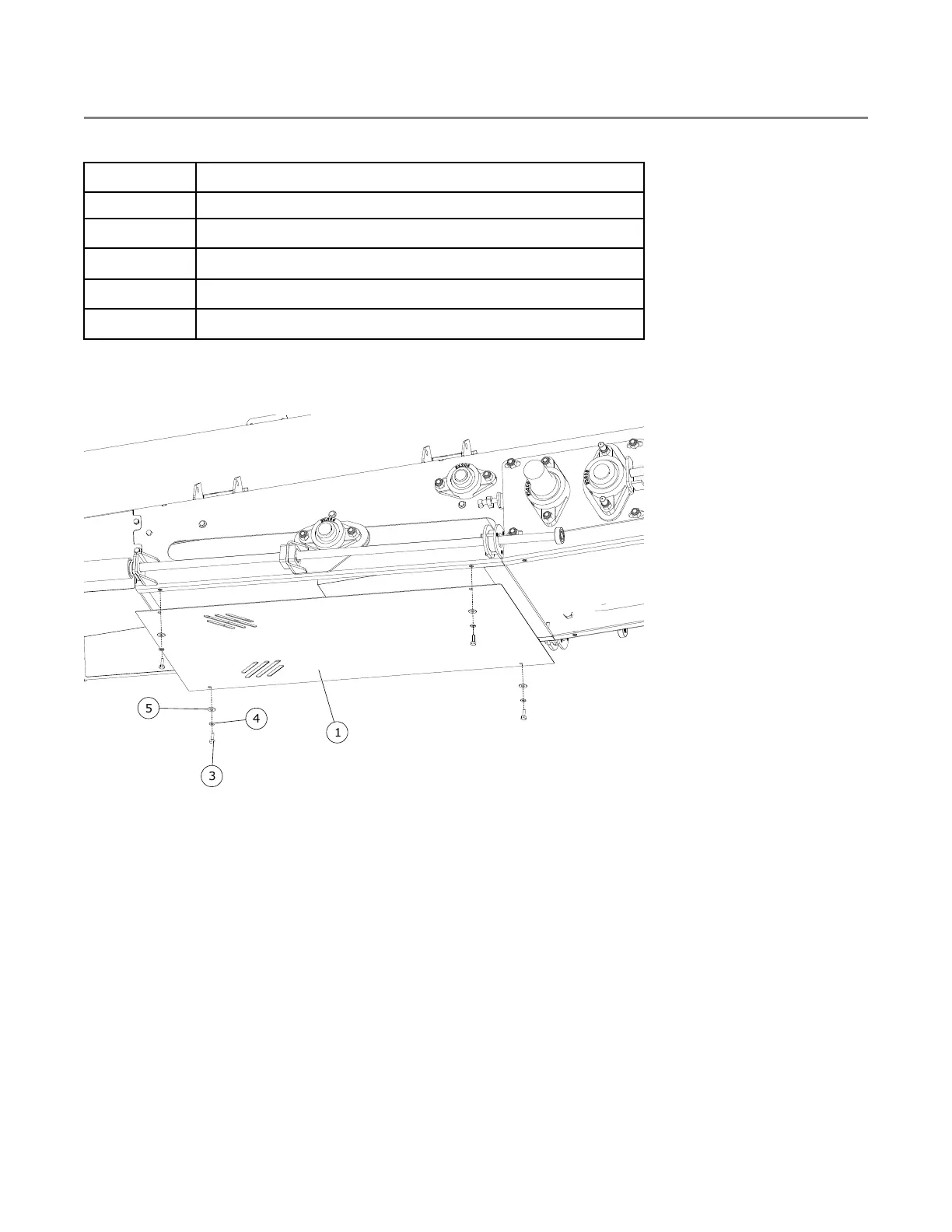

Figure 44. Installing the S-Drive Lower Bottom Guard
5
4
1
3
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
