3.33. Install the Wheels
1. Check if the pressure of tires matches the pressure indicated on the tire sidewall.

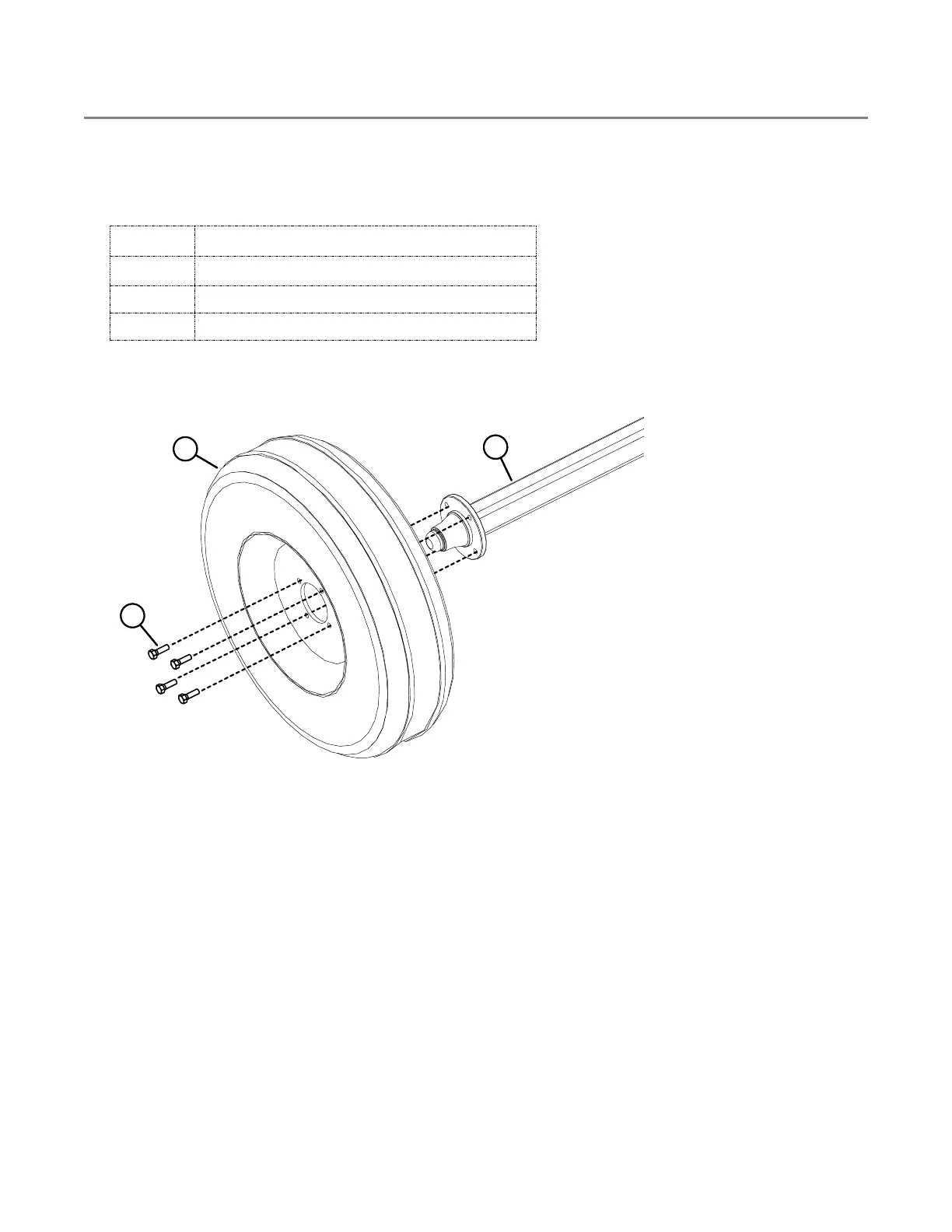

2. Mount the wheels (1) to the axle (2) with wheel bolts (3) provided (see Figure 61).
Table 24. Components to Attach the Wheels to the Axle
Item
Description
1
Tire Assembly
2
Axle
3
Wheel Bolt
Figure 61. Attaching the Wheels to the Axle
Note
Wheels may have four or six bolts, depending on the model of conveyor.
3
2
1
3
2
1
