110 8210-00020 R1
3.23.8 Tighten the Lower Hopper Cloth Frame Bolts
1. Tug the flashing upwards and away from the belt while tightening the bolts.
2. Gently tighten the bolts on the front and the uprights.
3. Run the conveyor belt.
4. While the belt is running, gently tighten the bolts along the sides until just past finger tight, so that the nut
is locked by contact with the weldment.
If the cloth frame is bolted down too tight, it is possible to crush the frame, seals, and belt
together in a way that restricts belt movement or deforms the seals and frame. This can
result in difficulty starting the belt, damage to the drive belts, leakage, and poor
equipment performance.
Note
Some smoke is expected as the seals are heated and broken-in.

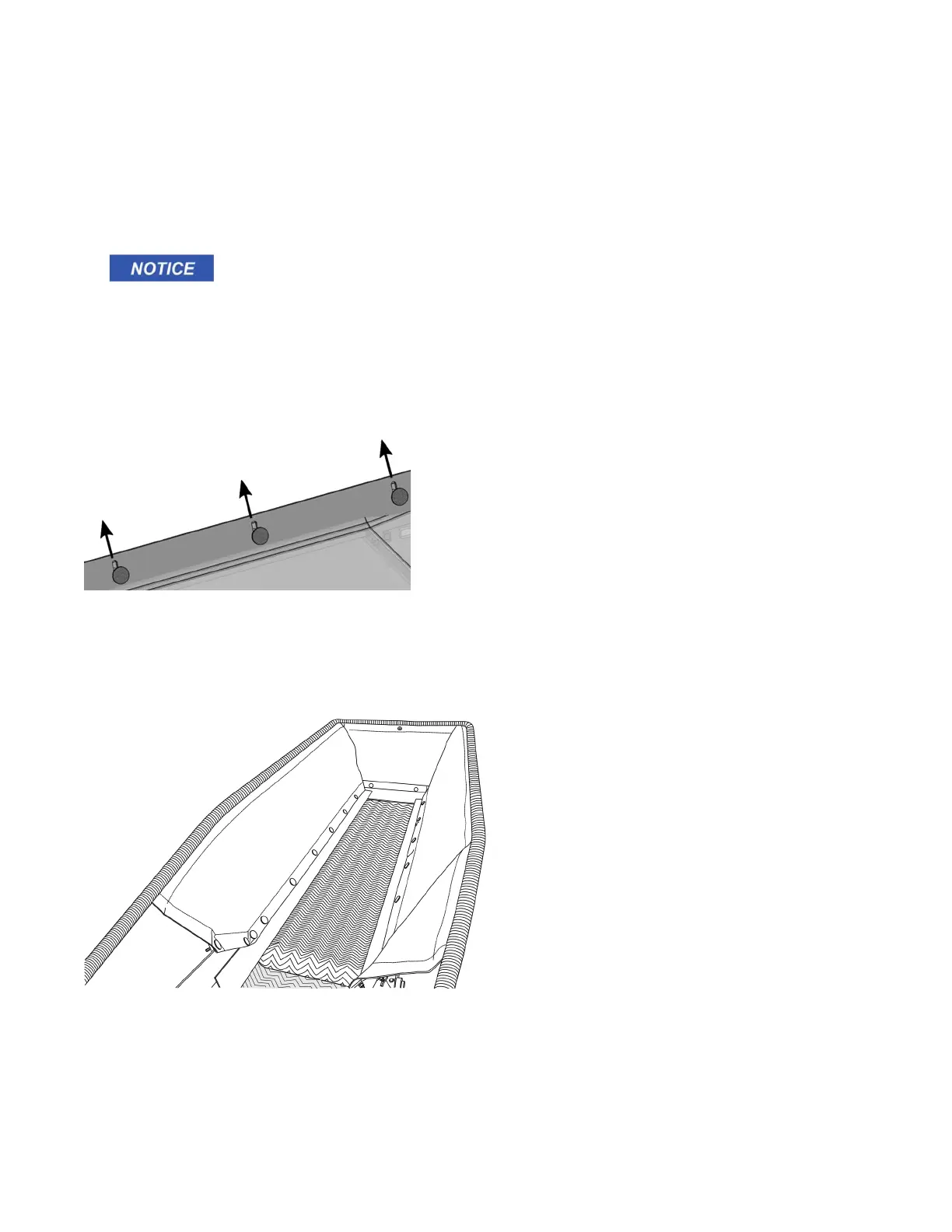

Tugging the Flashing Upwards
3.23.9 Install the Split Loom
Open split loom along the slit and snap over the upper frame to secure hopper cloth.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
