8210-00020 R1 95
3.22.1 Adjust the Rollers
1. Loosen bearing nuts and jam nuts (if equipped).

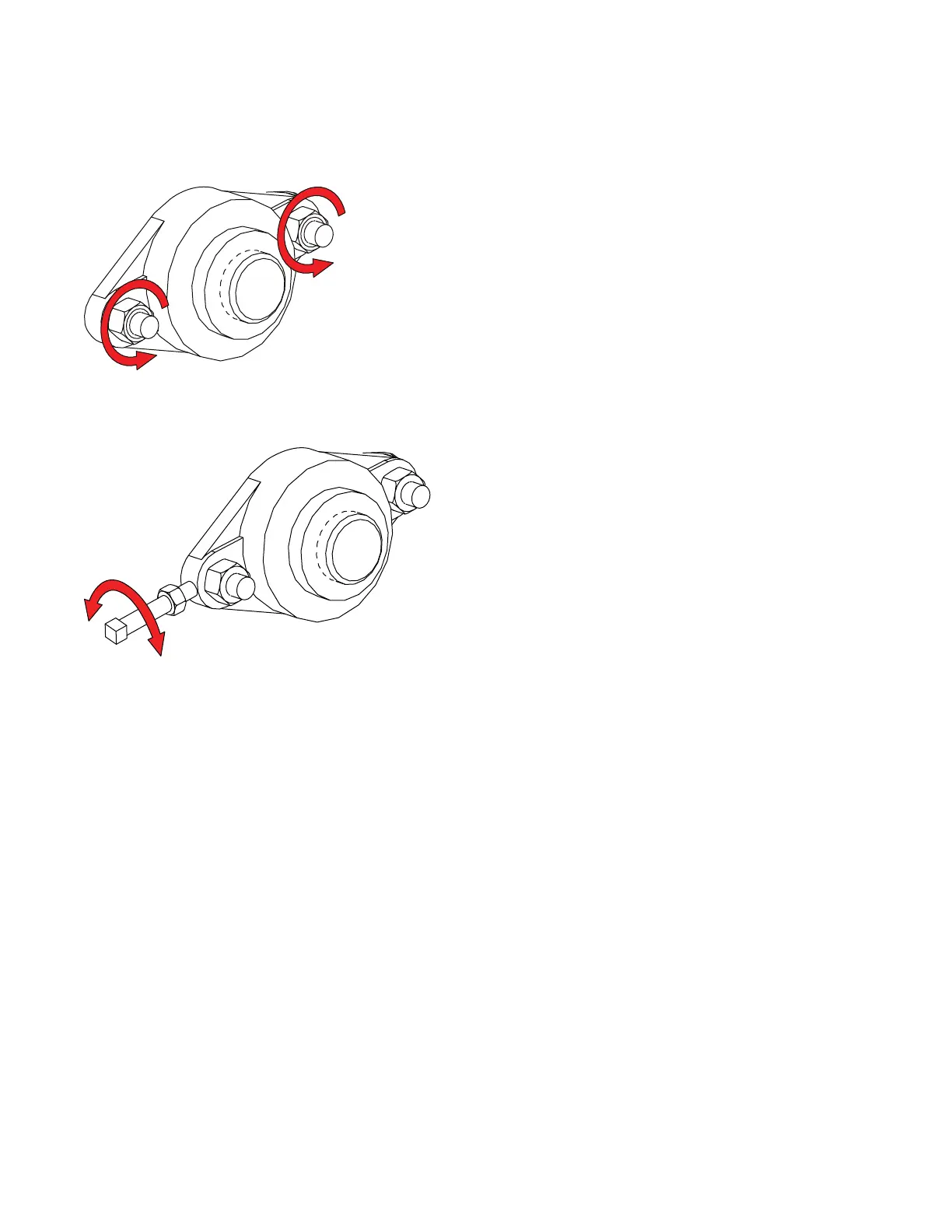

Figure 40. Loosen the Bearing Nuts
2. Rotate adjustment bolt 1/2 turn.
Figure 41. Rotate the Adjustment Bolt
3. Restart conveyor and run empty for 1 minute.
4. Stop the conveyor and remove ignition key or lock out the power source.
5. If the belt has centered, move to next step. If not, repeat Step 2 to Step 4 until the belt is centered.
6. Tighten the bearing bolts and jam nut (if equipped).
7. Replace any guards that were removed.
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
