122 8210-00020 R1
3.30. Attach the Spout Brush
1. Attach the brush (1) to the roller plates with 1/4" x 3/4" carriage bolts (2) and 1/4" lock nuts (3).
2. Adjust the position of the brush using the slots so that the bristles reach all the way to the deepest part of
the chevron on the belt (see Figure 57).
3. Tighten the nuts.

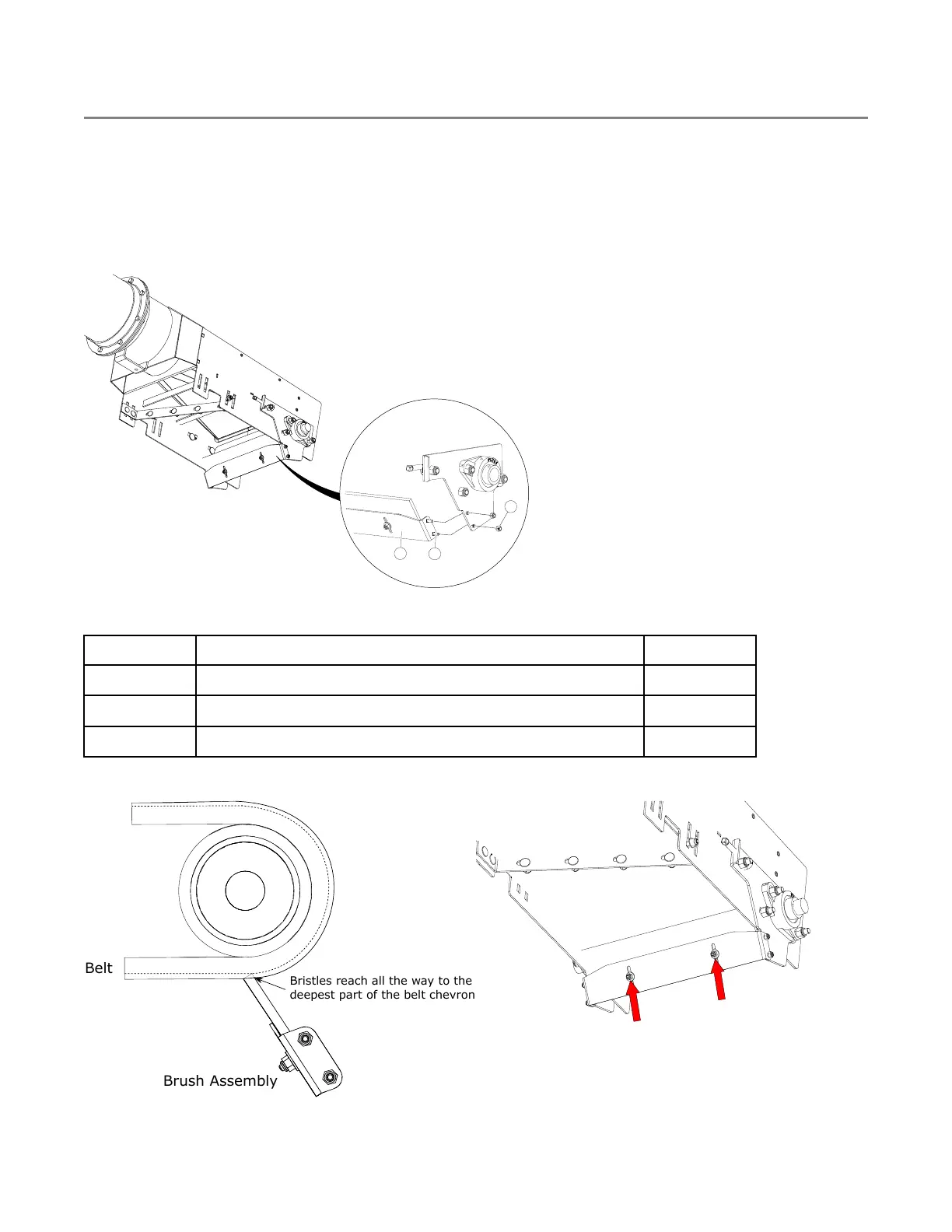

Figure 56. Attaching the Spout Brush
Table 22. Spout Brush
Item
Description Quantity
1
Spout Brush
1
2
1/4" x 3/4" Carriage Bolt (GR5)
4
3
1/4" Lock Nut (GR8)
4
Figure 57. Adjusting the Spout Brush
Belt
Brush Assembly
Bristles reach all the way to the
deepest part of the belt chevron
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
