AGI BCX3 1549 - Install the Motor and Gearbox to Bottom Frame

48 8210-00020 R1

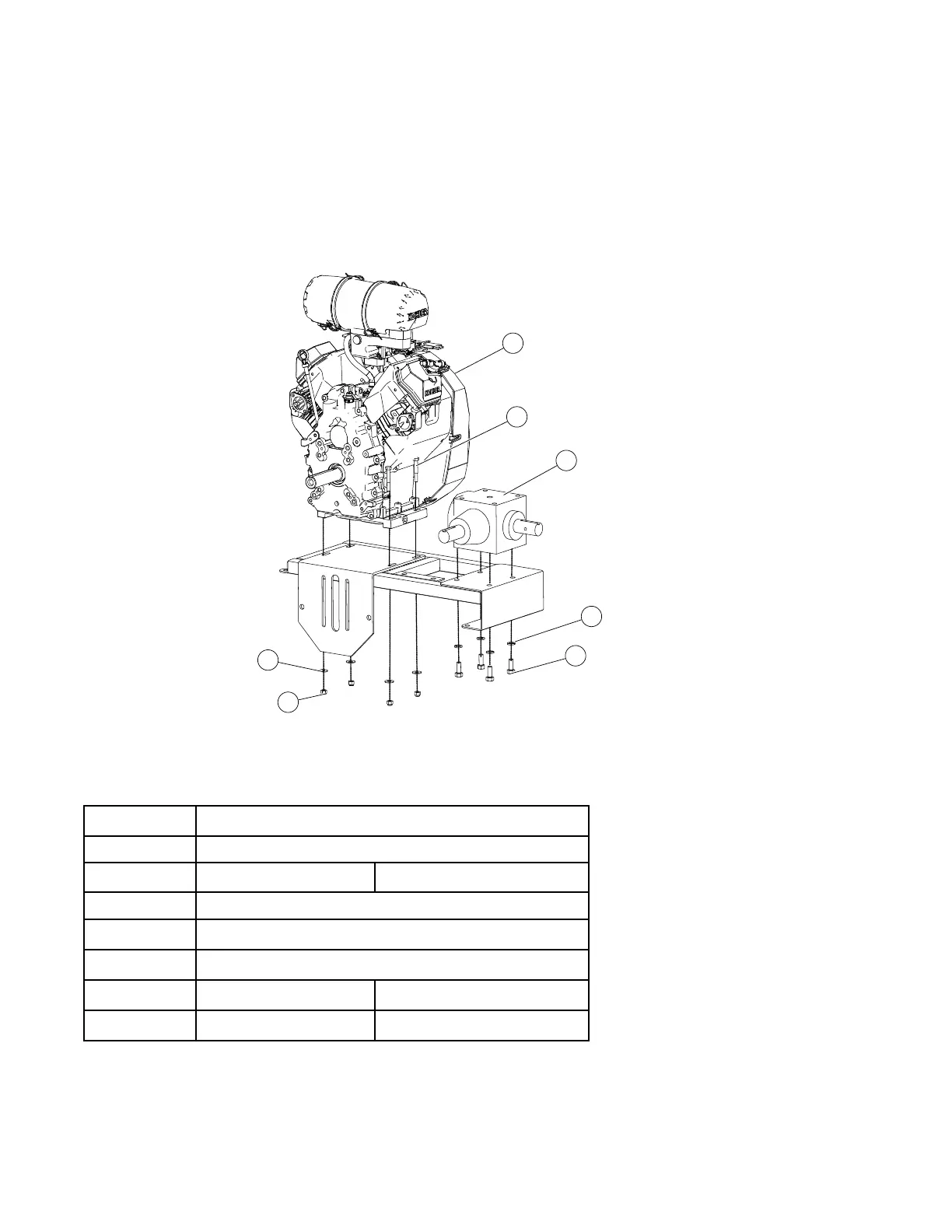

3.19.1 Install the Motor and Gearbox to Bottom Frame
Important
Do not tighten the motor or gearbox bolts until the drive belts have been installed and aligned.
Important
Fasten the gearbox to the frame with two bolts, the remaining two bolts are used in Section 3.19.3 –
Install the Bottom Frame on page 50
Note
Both sizes of hardware are included in the hardware kit. Use the size of hardware indicated in the
motor installation manual.
Item
Description
1 Motor
2
3/8" Lock Nut 5/16" Lock Nut
3
Gearbox
4
1/2" Lock Washer
5
1/2" X 1–1/4" Hex Bolt (GR 8)
6
3/8" Flat Washer 5/16" Flat Washer
7
3/8" X 2" Hex Bolt 5/16" X 2" Hex Bolt
Hardware: HRDW-15–100, HRDW-15–134
4
2
6
5
1
7
3
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
