AGI BCX3 1549 - Install the Guards

64 8210-00020 R1
3.19.11 Install the Guards

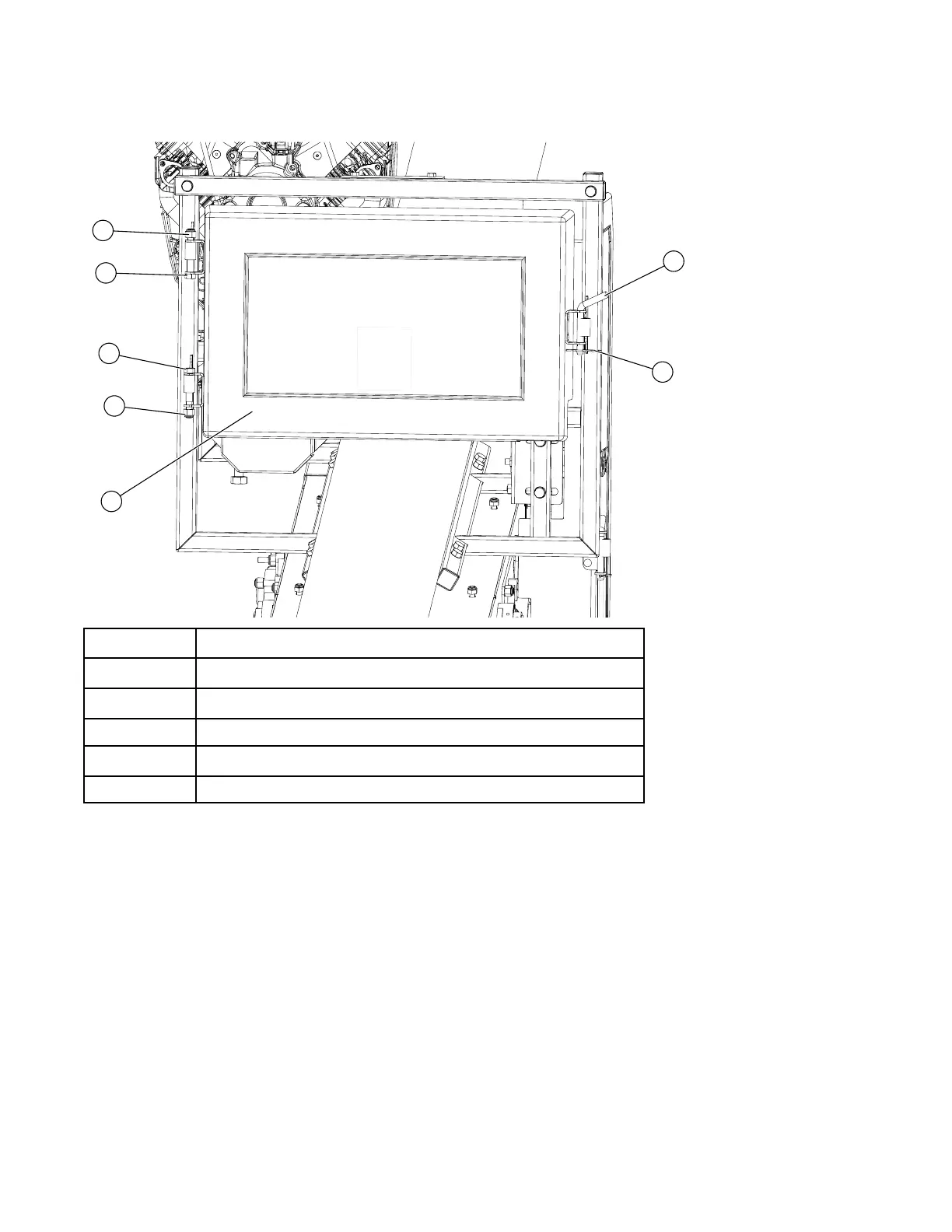

Installing the Front Guard
Item
Description
1
1/2" Lock Nut
2
1/2" X 3–1/2" Hex Bolt (GR 8)
3
Front Guard
4
1/2" X 3" Pin
5
Hair Pin
Hardware: HRDW-15–103
2
1
2
1
3
4
5
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
