AGI BCX3 1549 - Install the Battery

8210-00020 R1 87
3.20.9 Install the Battery

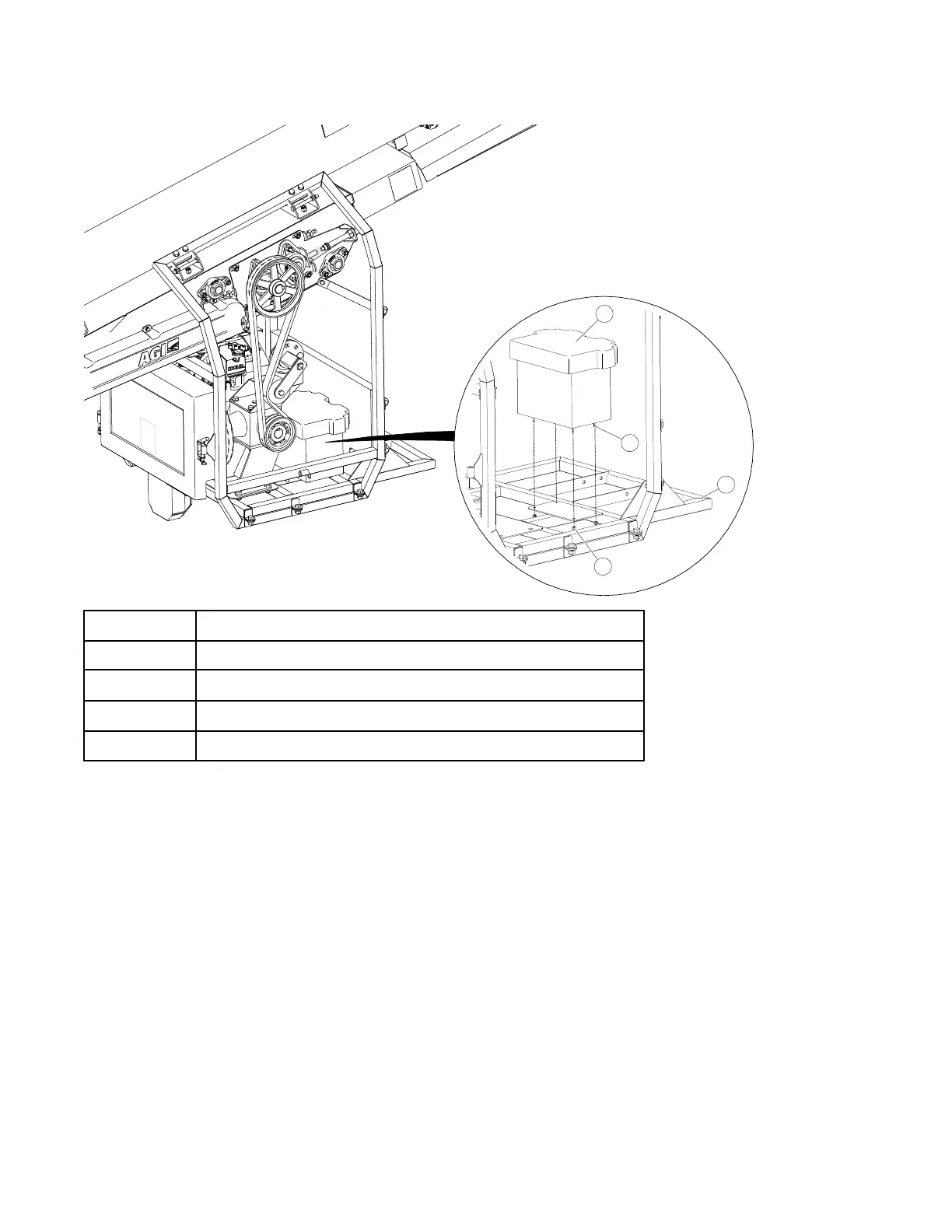

Item
Description
1 Battery Box
2
1/4" X 3/4" Hex Bolt (GR 5)
3
Battery Box Mount Plate (on bottom frame)
4
1/4" Lock Nut
Hardware Kit: PARTK-15–39
1. Place the 12V (min 420 CCA) battery in the battery box (1)
2. Connect the ground cable to a motor mount bolt using washers from hardware bag HRDW-15-100.
3. Connect the positive cable to the starter on the motor.
3
4
2
1
