Tensioning the Belt
1. Loosen the nuts (2, 3). This will allow the idler pulley (1) to pivot.
2. Place the square end of a ratchet into one of the square holes (4) in the idler pulley (1). Then rotate the idler
pulley with the ratchet handle to a torque of 35 ft-lb to tighten the belt.
3. Hold the ratchet in position with the belt tight and tighten the nuts (2, 3).
4. Reattach and secure the guard. Start the system to ensure proper operation.

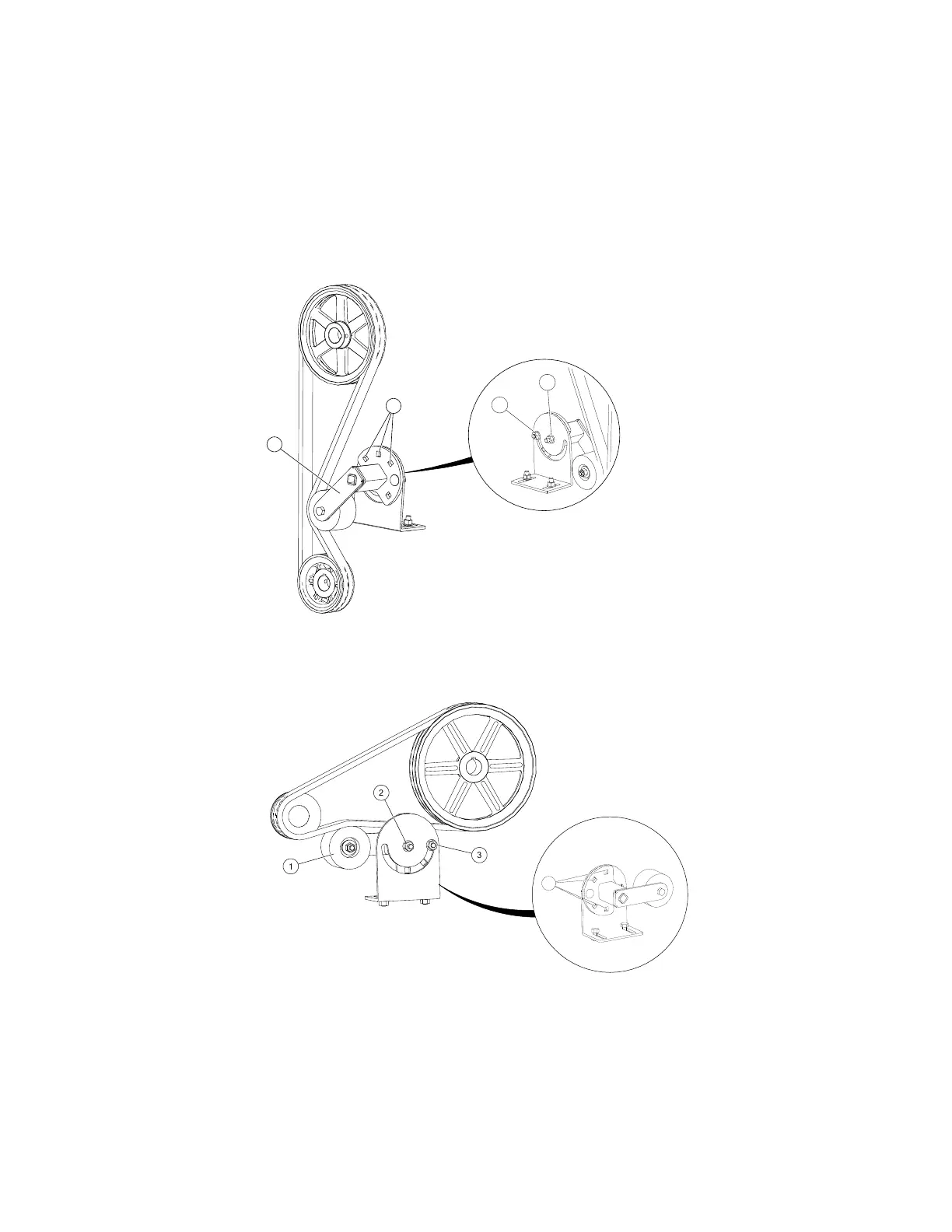

Pulley/Idler Configurations
4
1
3
2
View of Opposite Side
3
2
1
4
View of Opposite Side
