AGI BCX3 1549 - Page 85

8210-00020 R1 85

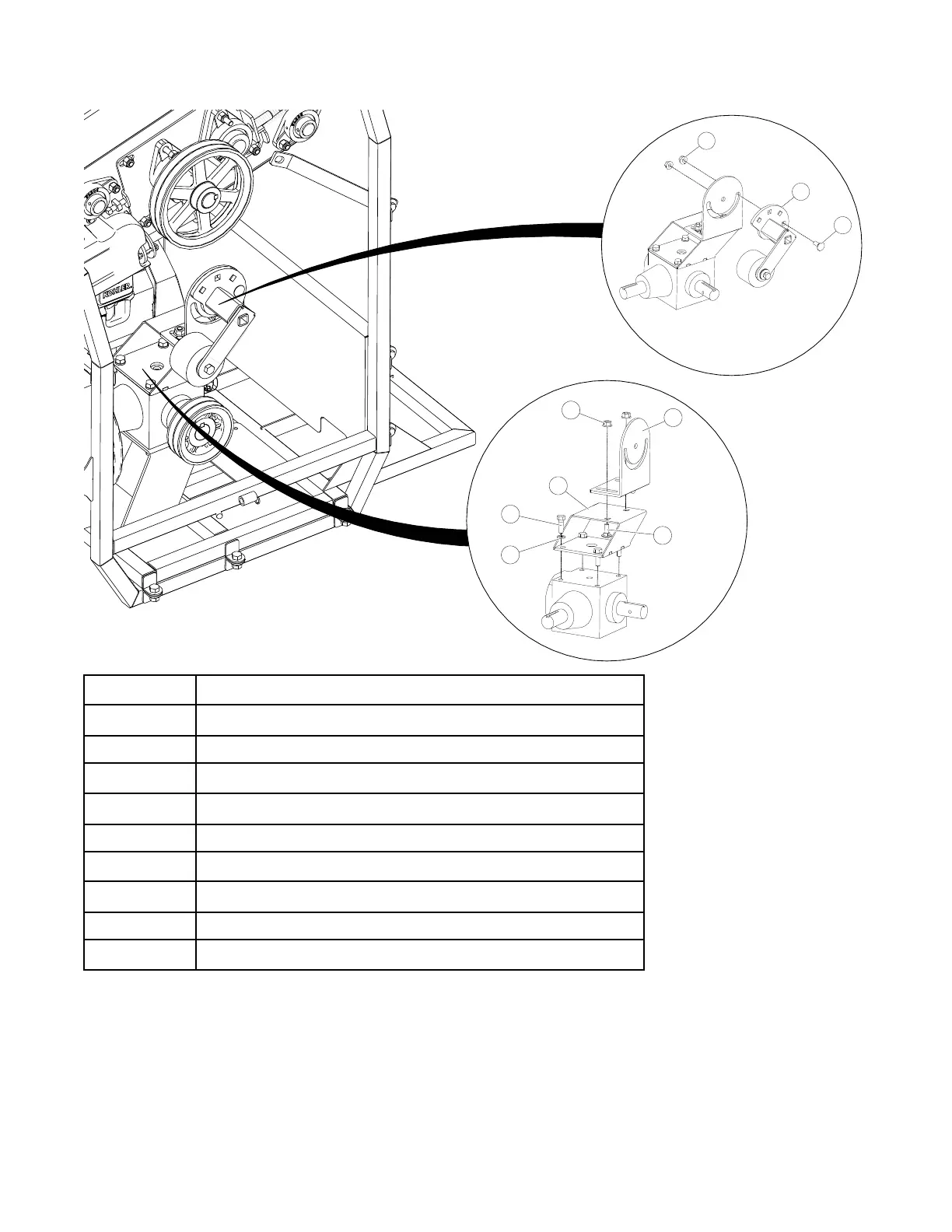

Installing the Torsion Idler
Item
Description
1
1/2" Hex Flange Nut
2
Idler Mount Plate
3
1/2" X 1–1/4" Carriage Bolt (GR 5)
4
1/2" X 1–1/2" Hex Bolt (GR 8)
5
Gearbox Idler Mount
6
1/2" Lock Washer
7
1/2" Hex Flange Nut
8
Idler Torsion Arm
9
1/2" X 1–1/4" Carriage Bolt
Hardware Kit: HRDW-15–120, HRDW-15–112
Note
Tighten the gearbox and motor bolts before using the torsion idlers to tension the drive belts.
5
3
6
2
4
1
7
8
9
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
