84 8210-00020 R1

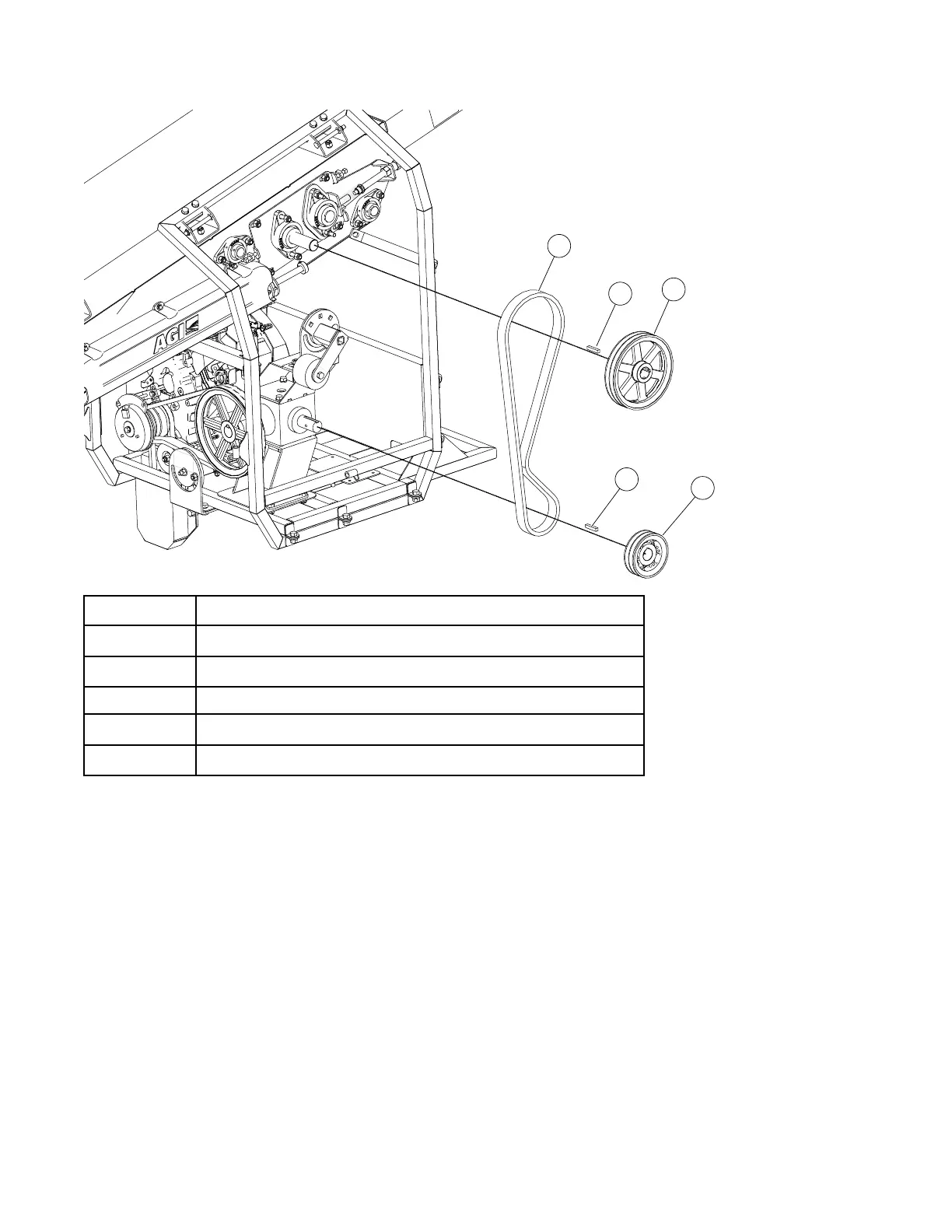

Installing the Drive Pulleys and Drive Belt
Item
Description
1
10" DBL Pulley (1-1/2"Bore)
2
3/8" x 2" Drive Key
3
2B72 Drive Belt
4
6" DBL Pulley (1-1/2"Bore)
5
3/8" x 2" Gearbox Key
Note
Align the pulleys using a straight edge before installing the belt. Tighten the set screws after the pulleys
are aligned.
2
1
5
3
4
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
