3.29. Attach the Hitch
1. Attach the hitch (1) to the hopper weldment using 1/2" x 2" bolts (2), 7/16" flat washers (3), and 1/2" nuts
(4).
2. Insert the tongue (5) into the tongue stub.
3. Secure the tongue in place using 5/8" x 3" hitch pin (6) and 3/16" x 3-1/4" hairpin (7).
Table 21. Hitch Components
Item
Description Quantity
1
Hitch FL (1 PC)
1
2
1/2" x 2" Hex Bolt (GR8)
4
3
7/16" Flat Washer
4
4
1/2" Nylock Nut (GR8)
4
5 Tongue - Drop FL 1
6
5/8" x 3" Hitch Pin
1
7
3/16" x 3-1/4" Hairpin
1
Hardware Kit: HRDW-15-16

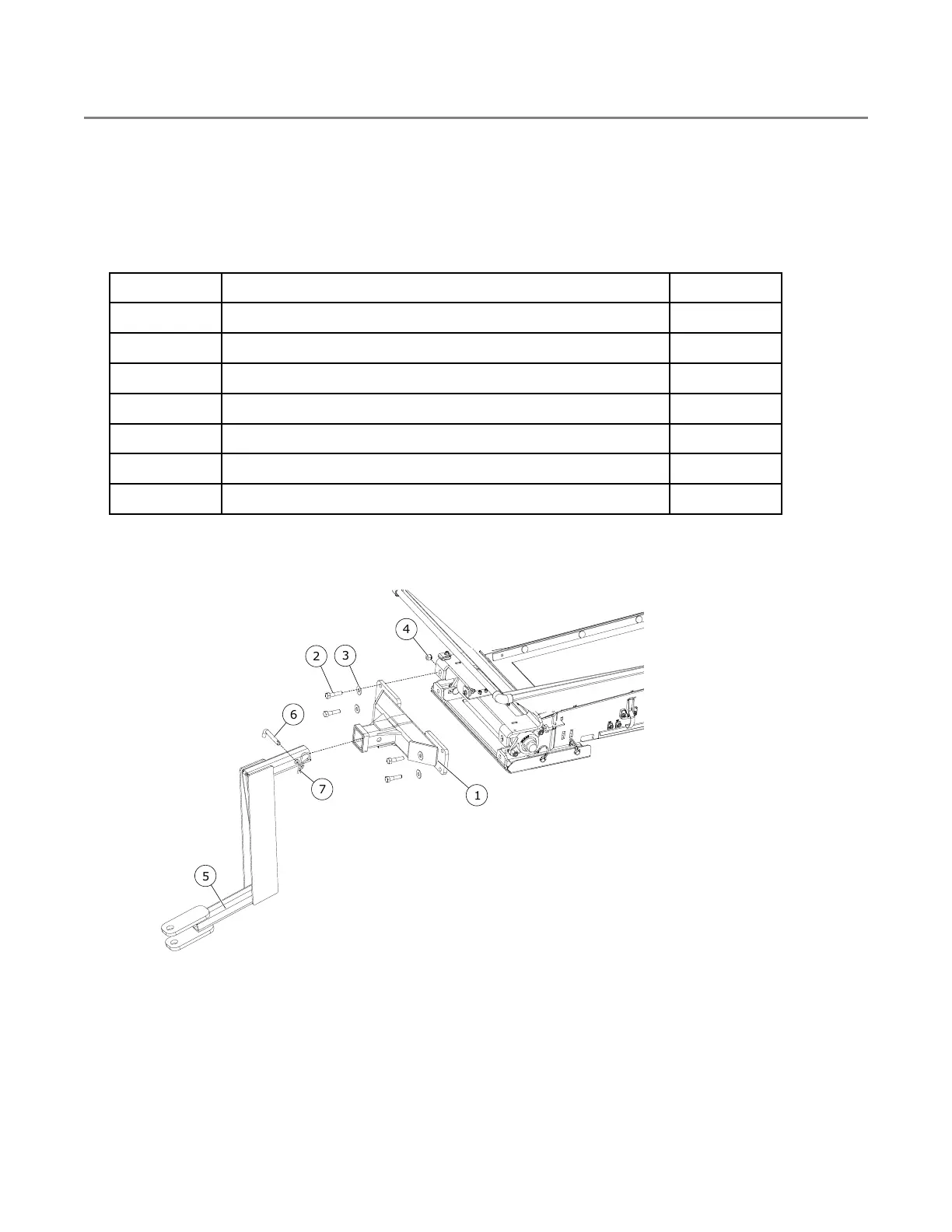

Figure 55. Hitch Components
4
3
2
5
6
1
7
