3.15. Attach the Pinch Drive Front Guard
1. Attach the pinch drive front guard (1) to the s-drive with 1/4" x 3/4" bolts (2), 1/4" flat washers (3), and 1/4"
lock washers (4) (see Figure 23).
Table 10. Parts Required to Attach Pinch Drive Front Guard
Item
Description Quantity
1
Pinch Drive Front Guard
1
2
1/4" x 3/4" Hex Bolt (GR5)
4
3
1/4" Flat Washer
4
4
1/4" Lock Washer
4
Hardware Kit: HRDW-15-44

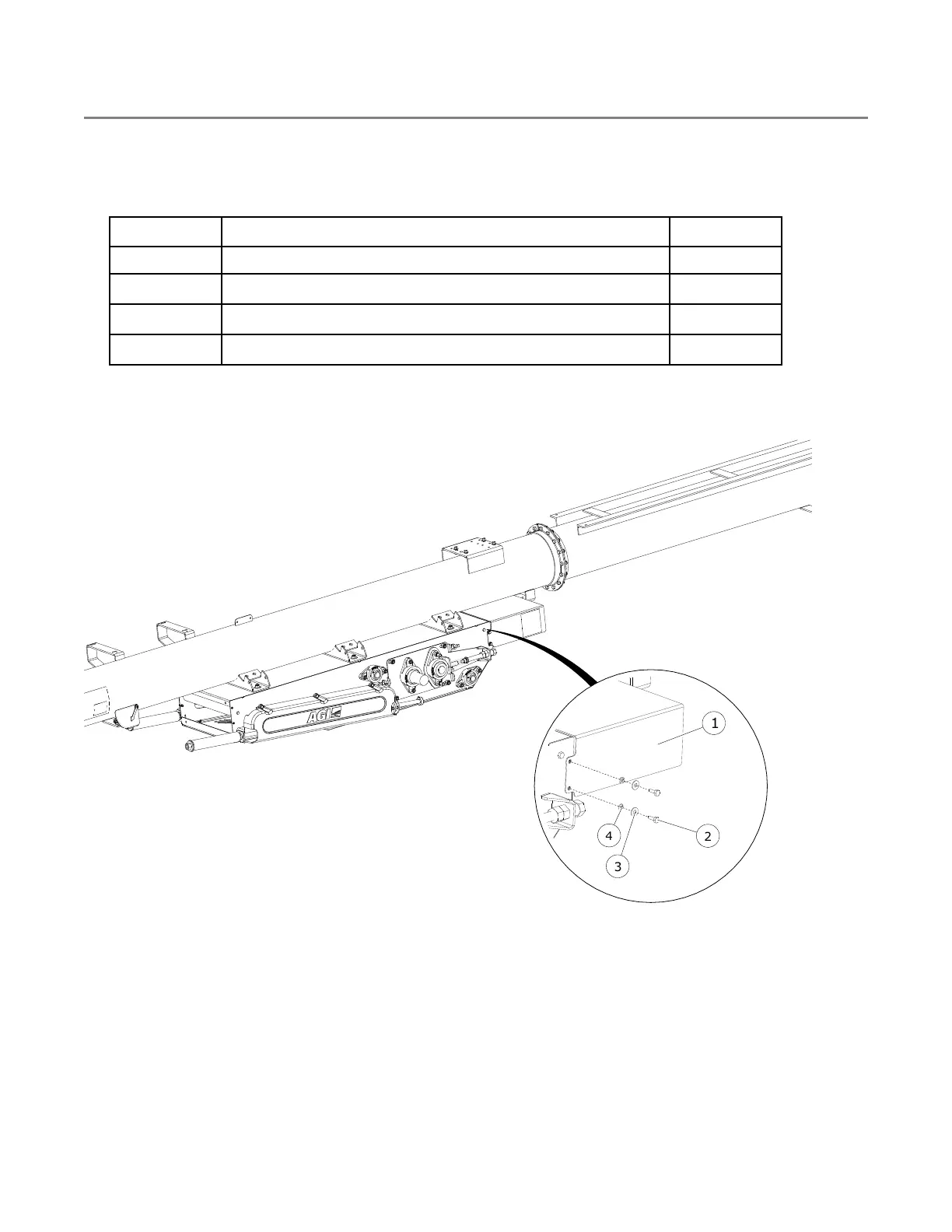

Figure 23. Attaching the Pinch Drive Front Guard
1
4
3
2
