3.13. Install the Hydraulic Winch
Depending on your conveyor model, it may be equipped with either a hand winch or a hydraulic winch.
1. Attach the winch (3) to the winch mount bracket (4) with 3/8" x 1" bolts (1) and 3/8" nuts (2) (see Figure
20).
Table 7. Hydraulic Winch Components
Item
Description
1
3/8" x 1" Hex Flange Bolt (GR5)
2
3/8" Hex Flange Nut
3
Winch
4
Winch Mount Bracket
Hardware Kit: HRDW-13-01

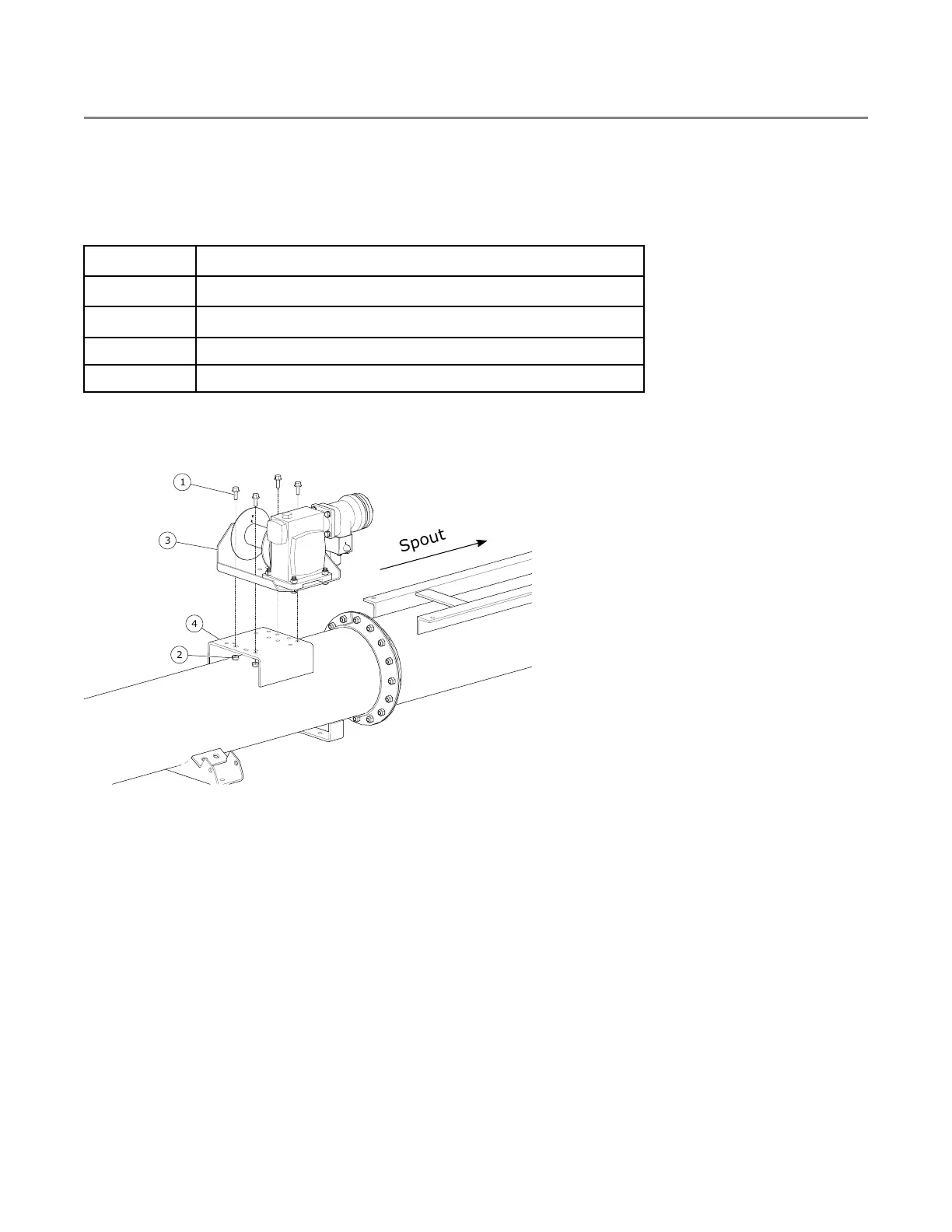

Figure 20. Attaching the Winch to the Tube Bracket
4
2
3
1
Spout
