34 8210-00020 R1
Attach the Hydraulic Hose
1. Wrap threaded seal tape around the exposed thread of the hydraulic fittings.
2. Attach the hydraulic fittings (1, 2, 3) and hoses (4) (see Figure 21).
Note
Protect hose ends from dirt.
Table 8. Hydraulic Winch Fittings and Hoses
Item
Description Quantity
1
Swivel 3/8" PT/90D
2
2
Hose 3/8" x 32-1/2'
2
3
Quick Coupling Nipple 1/2" FPT
2

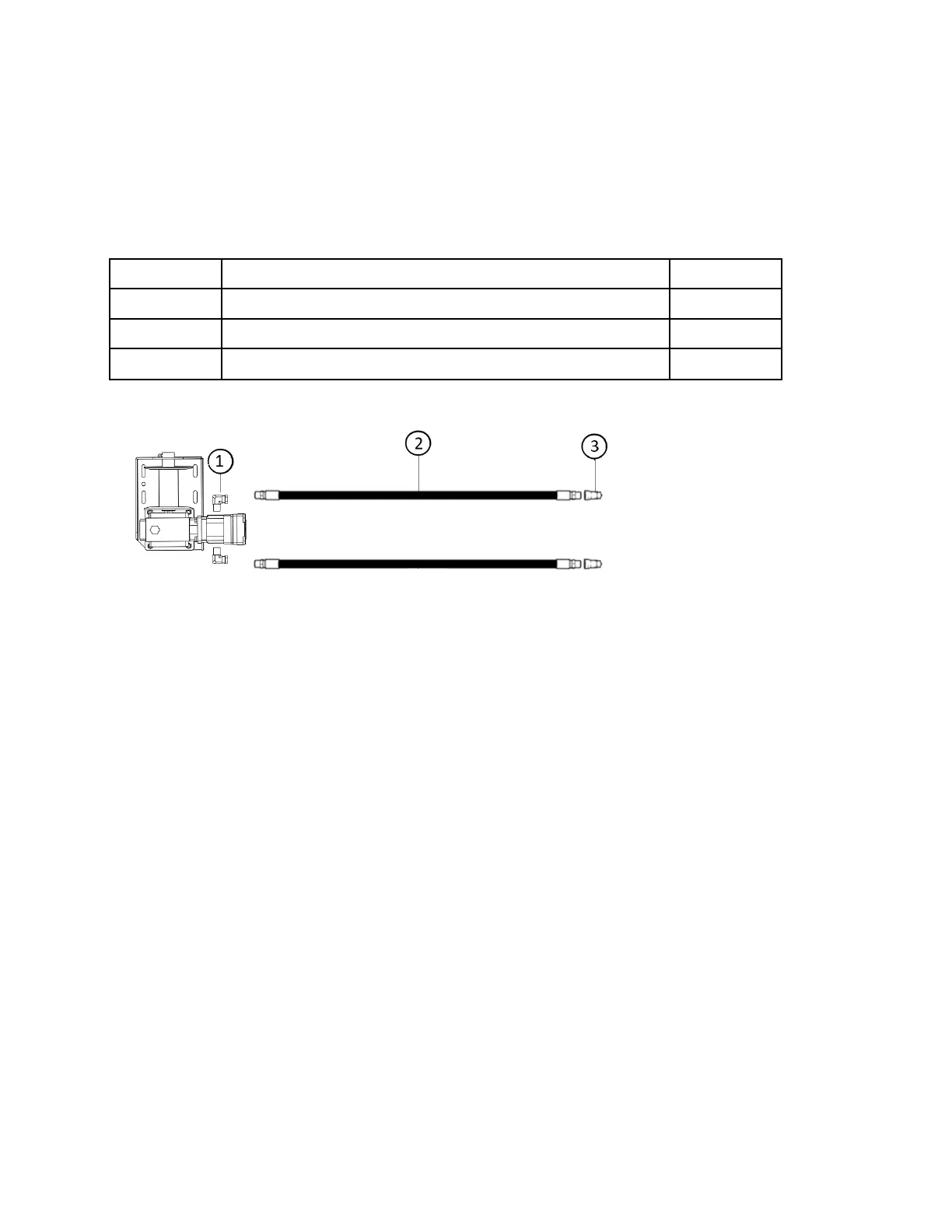

Figure 21. Attaching the Hydraulic Hoses
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
