3.18. Install the Belt
This section describes how to install the conveyor belt in the tube. Refer to the packing slip for the length of the
conveyor belt used in the installation.
Thread a Fish Tape through the Conveyor Tube
1. Place the rolled belt on a stand behind the hopper.
2. Pull the conveyor belt over the top of the hopper roller, until just inside the hopper, as shown below.

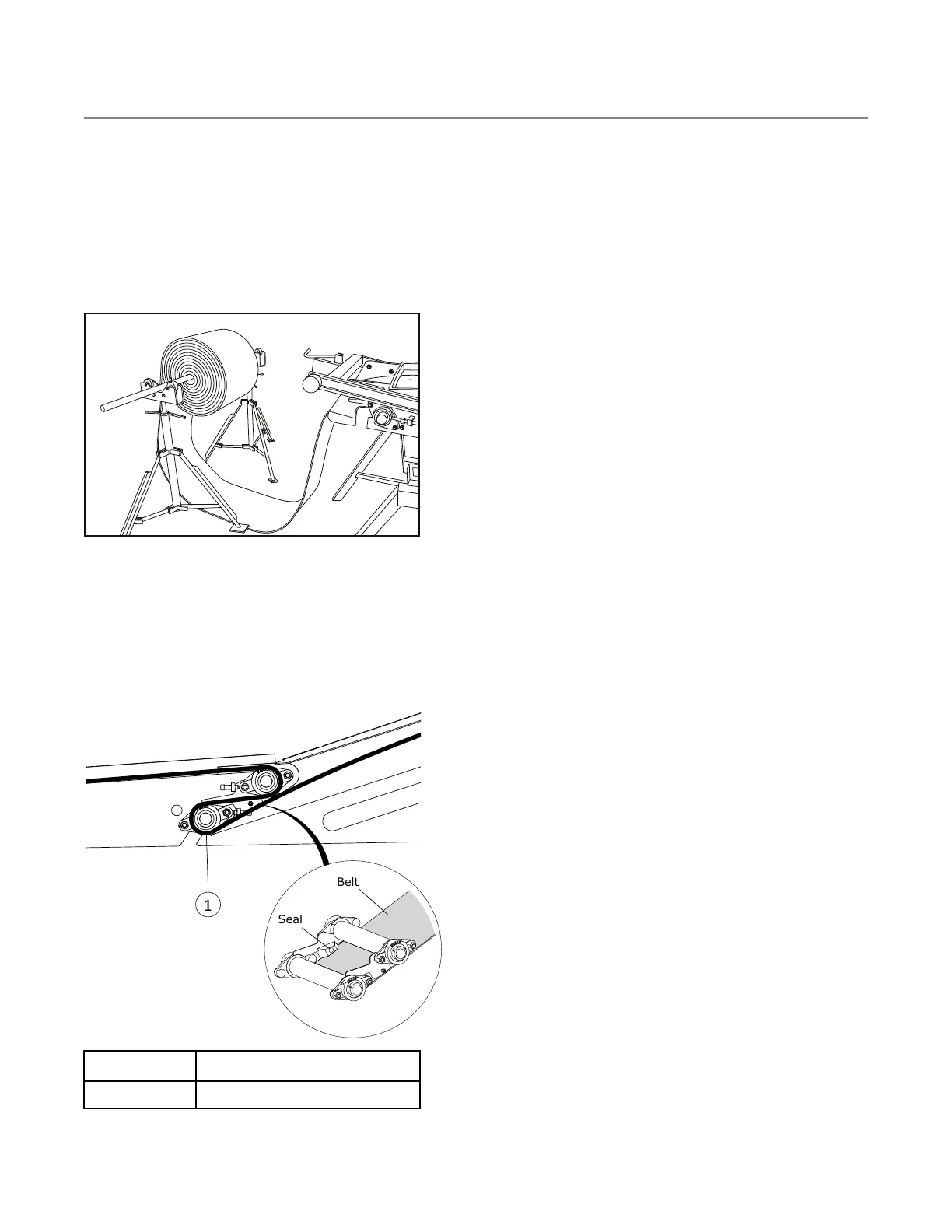

Figure 25. Rolled Belt Behind a Typical Hopper
3. Feed a fish tape in at the spout, through the tube, and into the hopper.
4. Manually thread the belt around the transition rollers (1) in the hopper.
Important
Pass the belt underneath the protruding edge of the seal to prevent grain leakage. Refer to Figure
26.
Figure 26. Belt Through Transition Rollers
Item
Description
1
Transition Roller
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
