5. Attach the end of the belt to the fish tape using a clamp, or use a short piece of belt and thread the
connector wire through the lacing clips to connect.

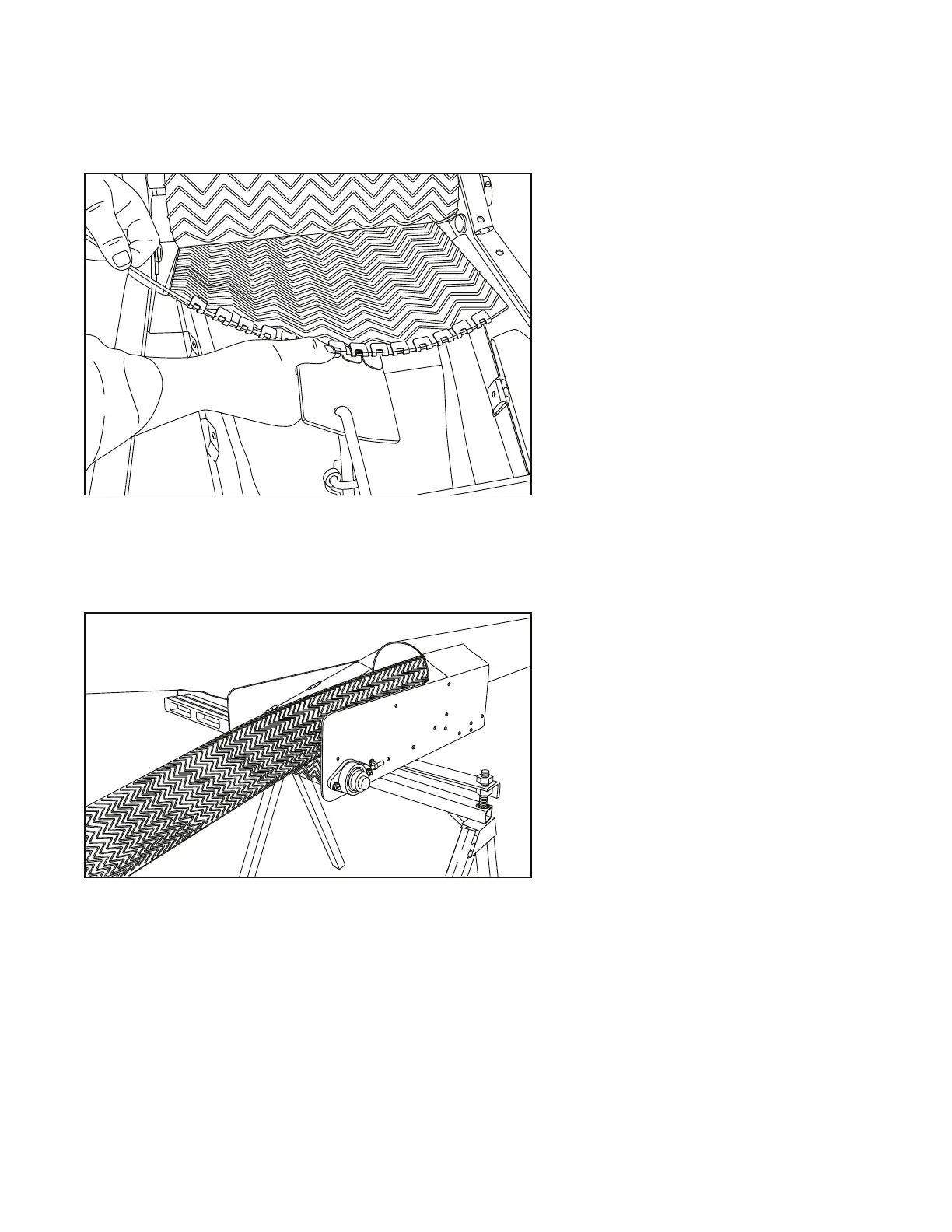

Figure 27. Attaching the Short Belt Piece to the Belt
Thread the Conveyor Belt
1. From the spout end, pull the fish tape until the belt emerges from the spout.
Figure 28. Conveyor Belt Pulled Through the Spout
2. Wrap the belt around the spout roller and pull it back under the conveyor tube up to the s-drive.
3. Remove the s-drive bottom guard.
4. Loosen the s-drive pinch roller bolts and take-up roller bolts (on both sides of s-drive) to the end of their
threads.
Note
Do not tighten the nuts on the pinch roller bolts and take-up roller bolts on the s-drive until the belt
is fully installed.
5. Guide the belt through the s-drive as shown in the figure below.
