42 8210-00020 R1
6. Pull the conveyor belt out from the back of the s-drive until approximately 6' (1.8 m) of excess belt remains
on the stand behind the hopper.

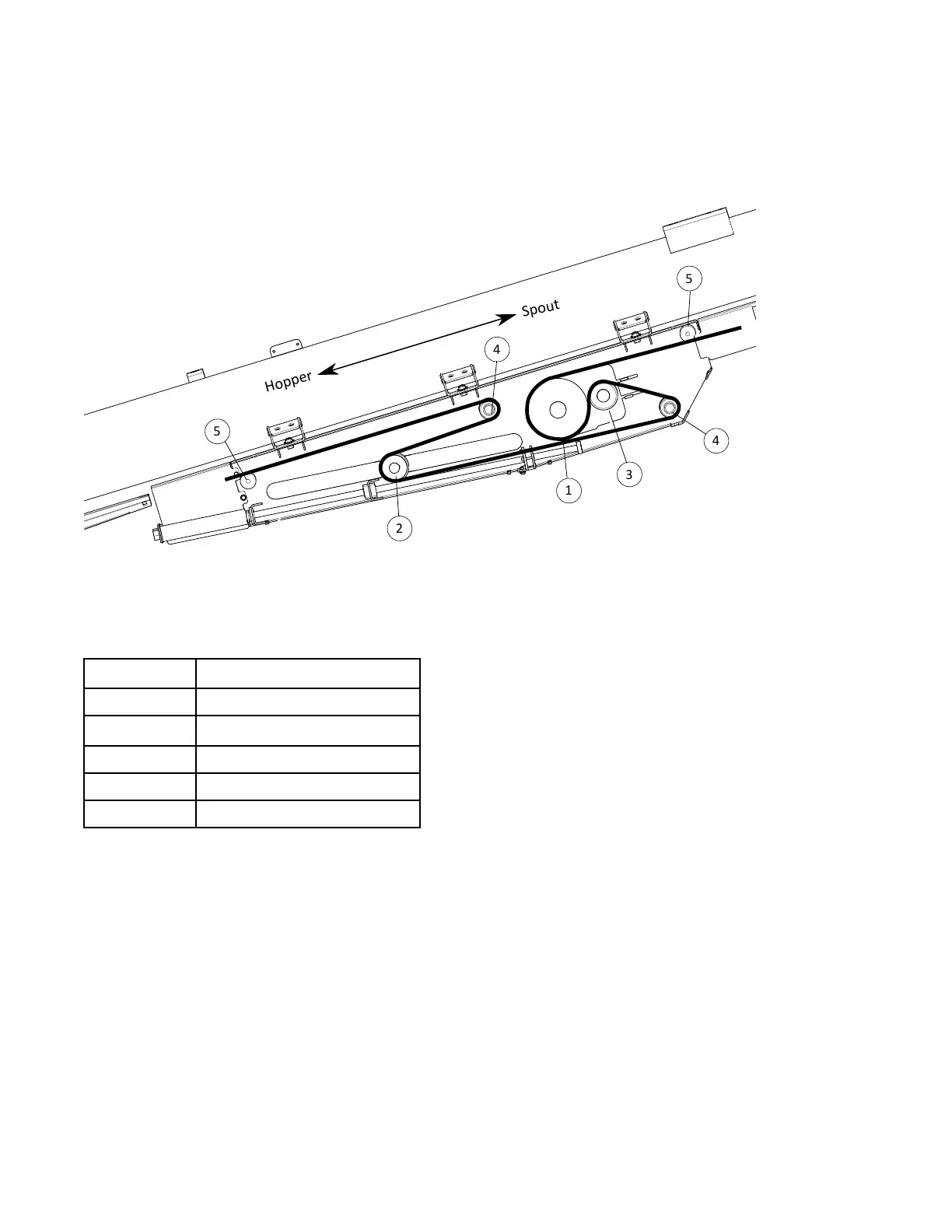

Figure 29. S-Drive Conveyor Belt Path
Spout
Hopper
5
1
3
2
5
4
4
Item
Description
1
Drive Roller
2
Take-up Roller
3
Pinch Roller
4
Return Roller
5
Hex Roller
7. Wrap the belt around the spout roller and back under the conveyor tube to the hopper.
8. Wrap the remaining conveyor belt around the hopper roller and under the tube.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
