8210-00020 R1 43

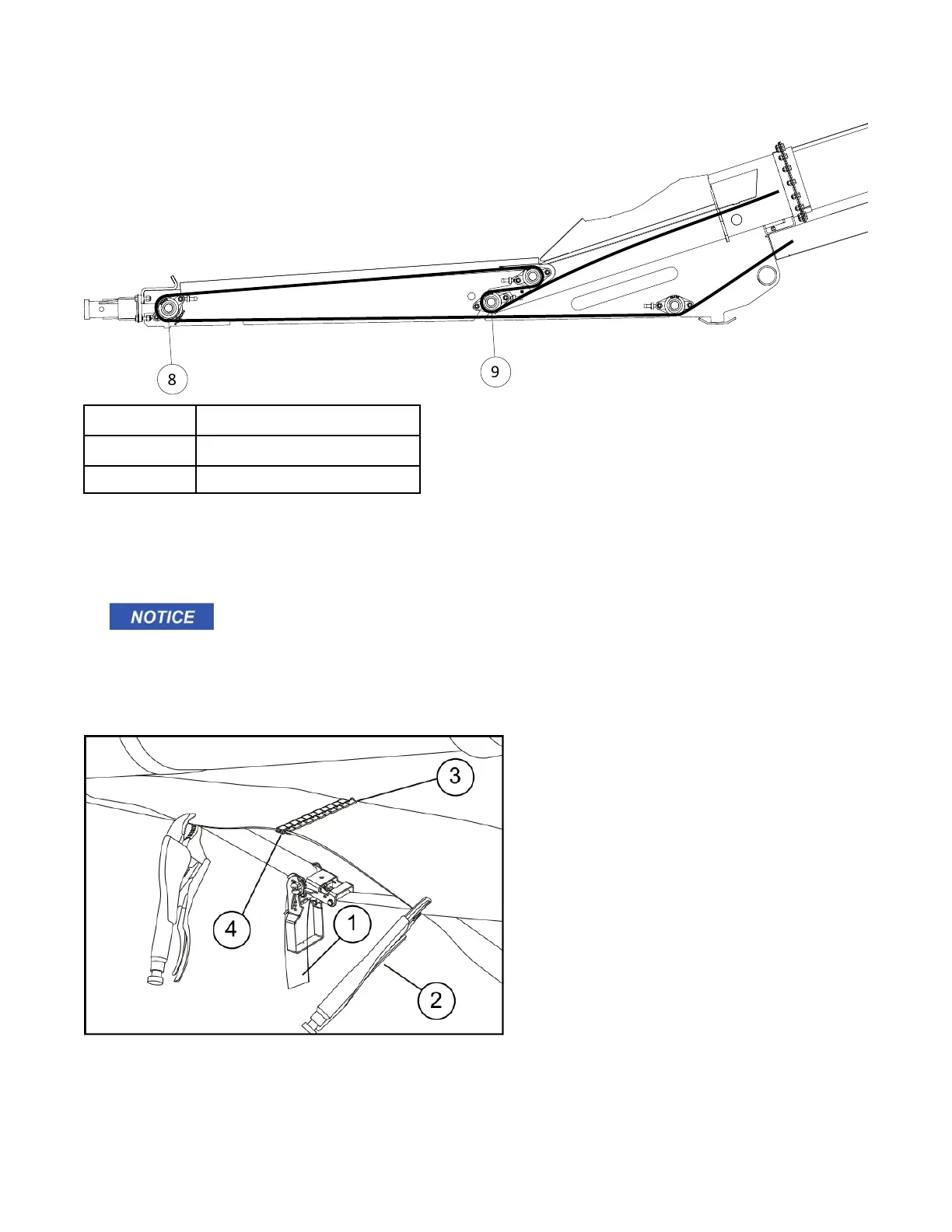

Figure 30. Conveyor Belt Bottom Path
Item
Description
8
Hopper Roller
9
Transition Roller
The conveyor belt is now ready to be connected.
Connect the Conveyor Belt
1. Attach a strap puller (1) to each end of the belt and secure with vise-grips (2).
Do not attach the vise grips too tightly, this can damage the belt.
2. Pull the ends of the belt together.
3. Install connector wire through the belt lacing (3).
Figure 31. Using a Strap Puller
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
