44 8210-00020 R1
Figure 31 Using a Strap Puller (continued)
Item
Description
1
Strap Puller
2 Vise Grip
3
Belt Lacing
4
Lacing Pin
4. On both corners of the trailing edge of the belt, trim 1/8” off the tip of the corner to prevent fraying.

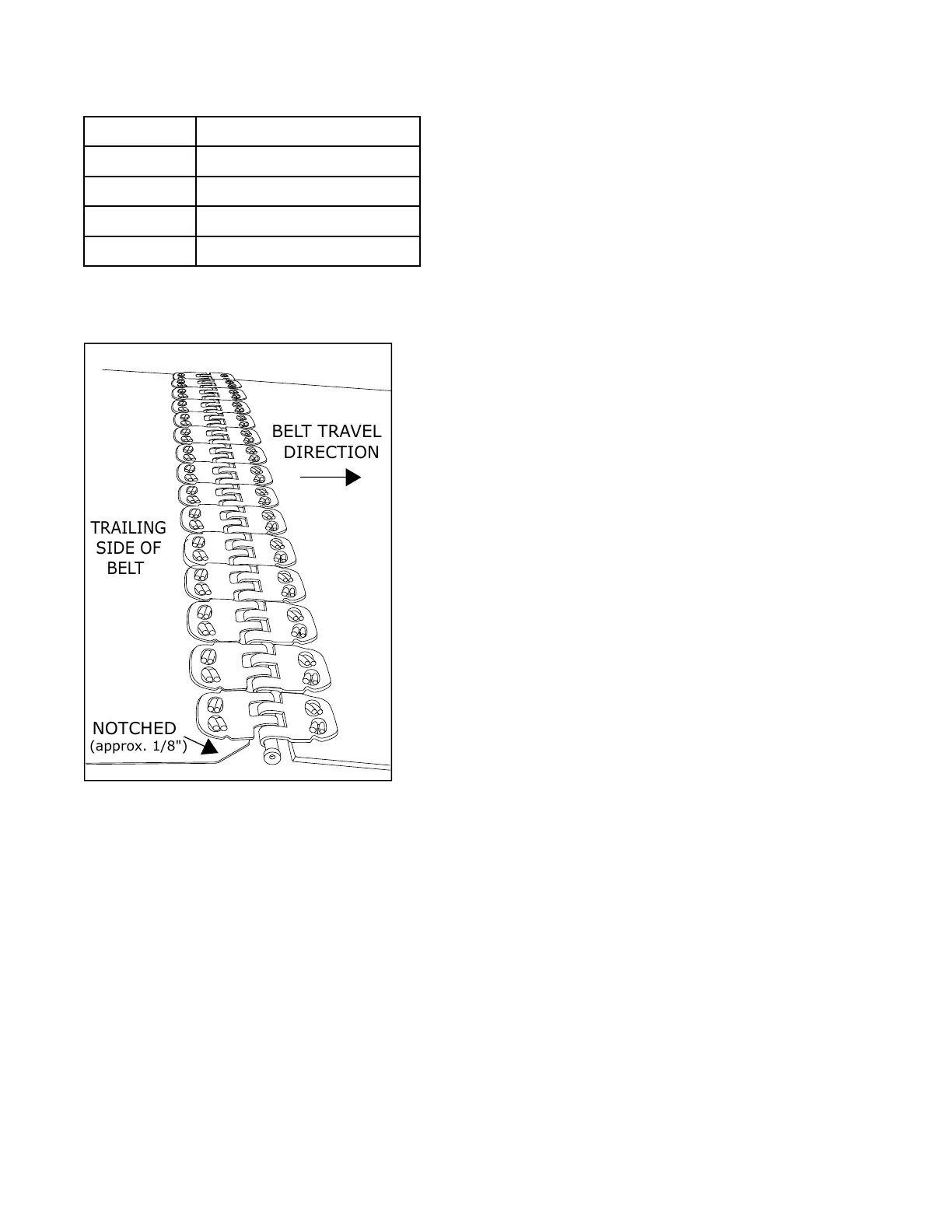

Figure 32. Tapering the Trailing Edge of the Belt
NOTCHED
BELT TRAVEL
DIRECTION
TRAILING
SIDE OF
BELT
(approx. 1/8")
Sealing the Belt Lacing
This section describes how to seal the belt lacing when handling oilseeds to prevent leakage.
1. Apply a thin layer of flexible industrial strength adhesive to the belt lacing while the belt is under tension.
Note
Eclectic E6000 Industrial Strength Adhesive or equivalent is recommended. This adhesive remains
flexible once cured.
2. Spread the adhesive into all gaps between the teeth of the belt lacing.
3. Allow adhesive to cure.
Important
Do not install urethane seals and flashing or attempt to run the conveyor until the adhesive coating
is allowed to dry or partially cure.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
