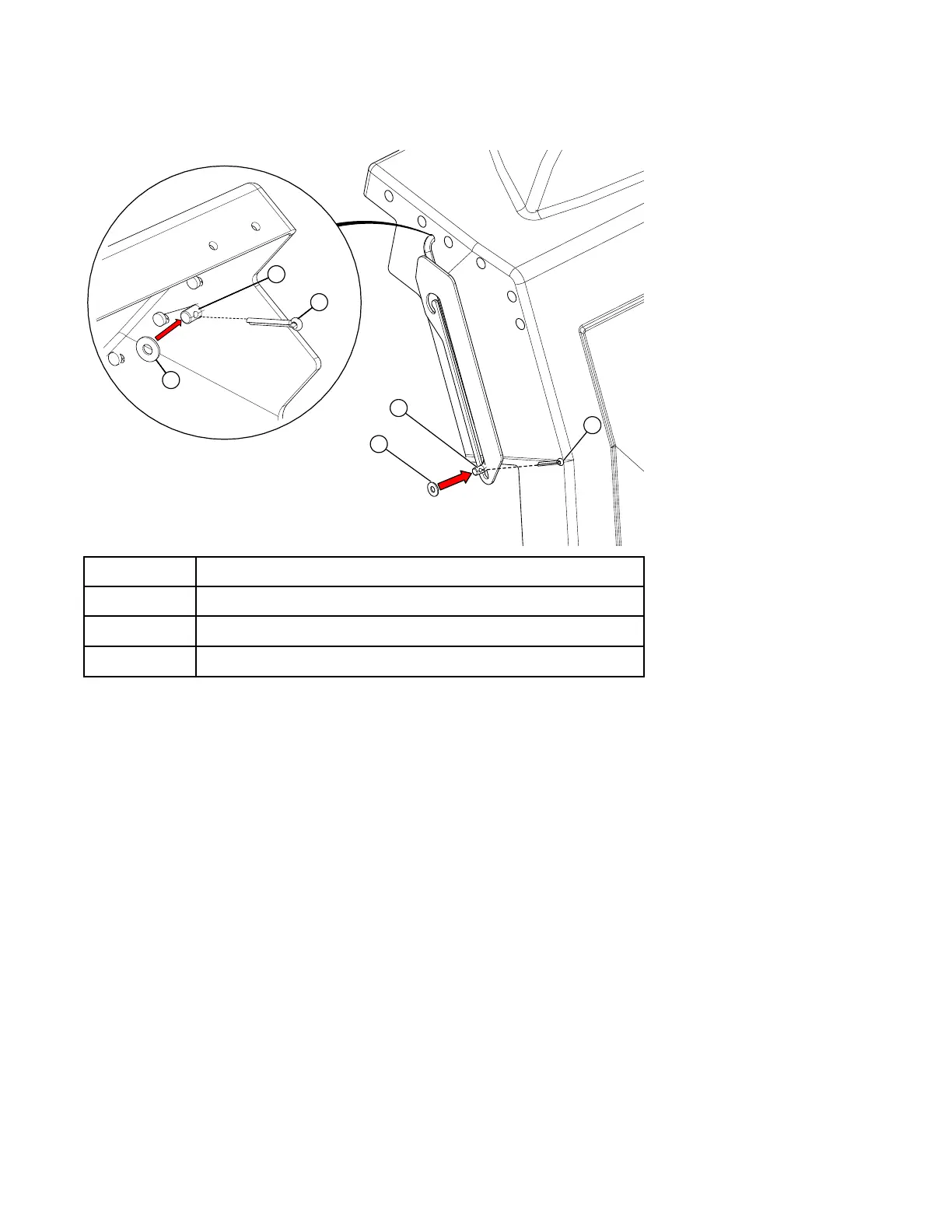

Installing the Side Guard Support Arm
1. Secure both ends of the support arm using a cotter pin (3) and washer (2).
Item
Description
1 Support Arm
2
1/4" Flat Washer
3
3/16" Cotter Pin
Hardware Kit: HRDW-15–118
2
2
1
1
3
3
1
2
