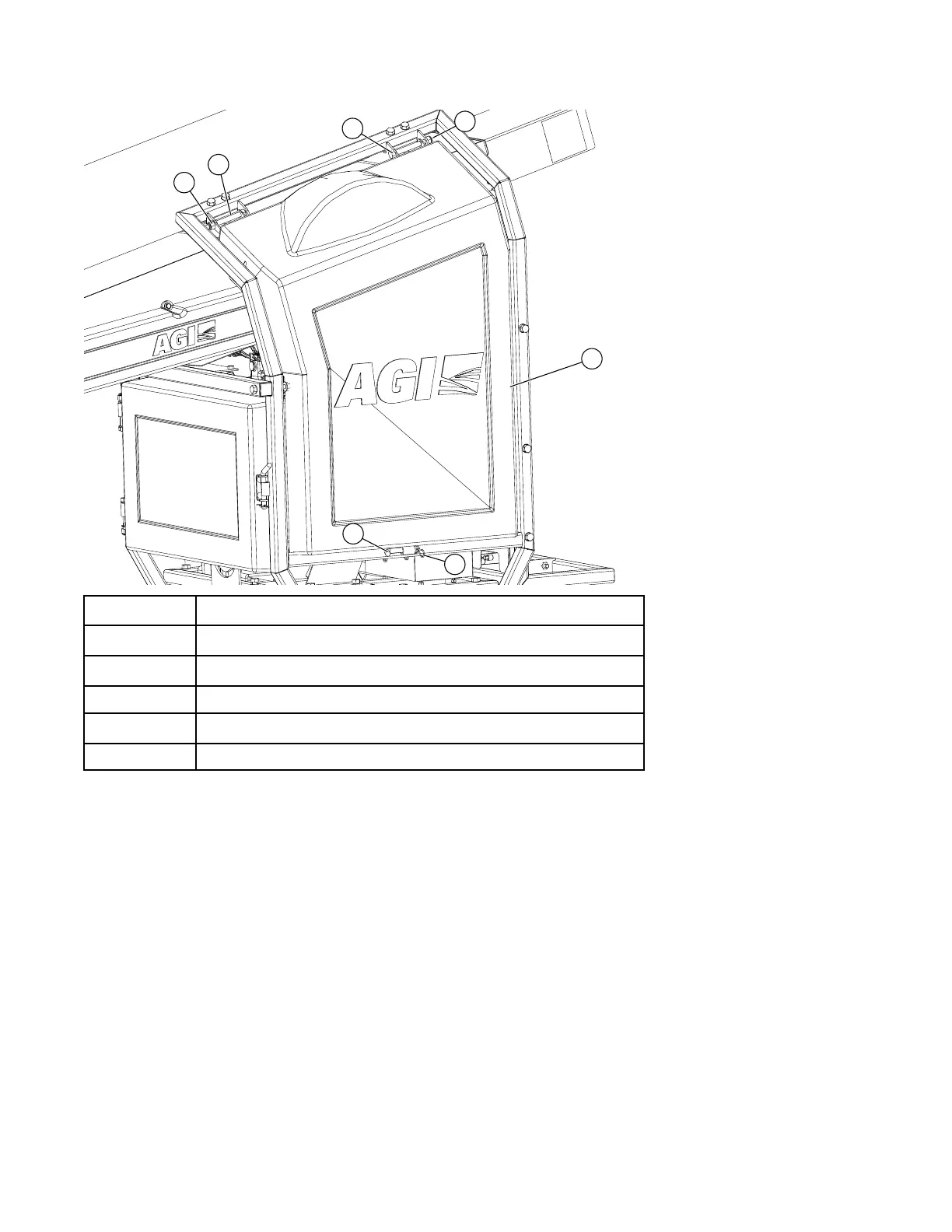

Installing the Side Guard
Item
Description
1
1/2" Lock Nut
2
1/2" X 4–1/2" Hex Bolt (GR 8)
3
Drive-Side Guard Panel
4
1/2" X 3" Hitch Pin
5
Hair Pin
Hardware Kit: HRDW-15–104
1
5
2
3
2
1
4
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
