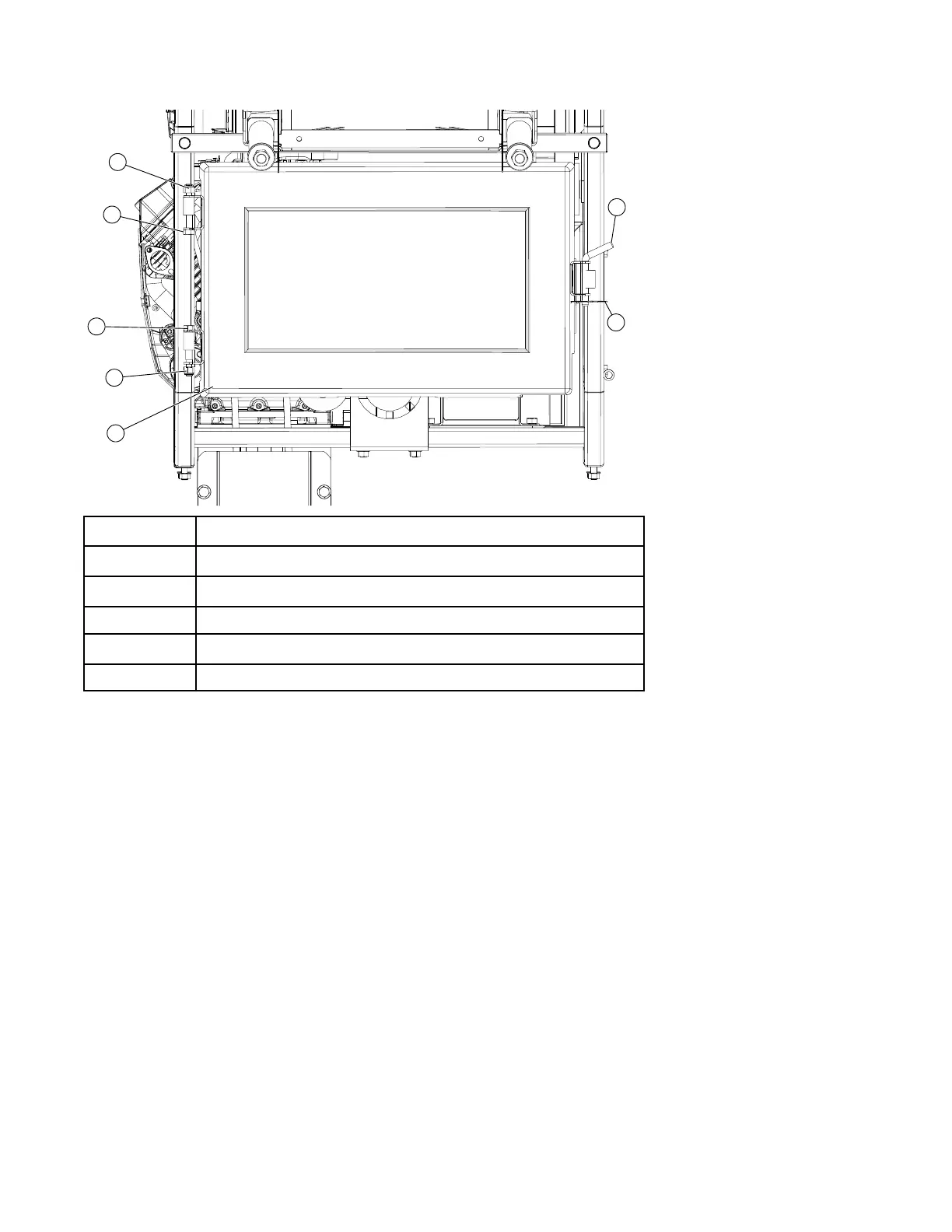

Installing the Front Guard
Item
Description
1
1/2" Lock Nut
2
1/2" X 3–1/2" Hex Bolt (GR 8)
3
Front Guard
4
1/2" X 3" Pin
5
Hair Pin
Hardware Kit: HRDW-15–103
2
1
4
2
1
3
5
