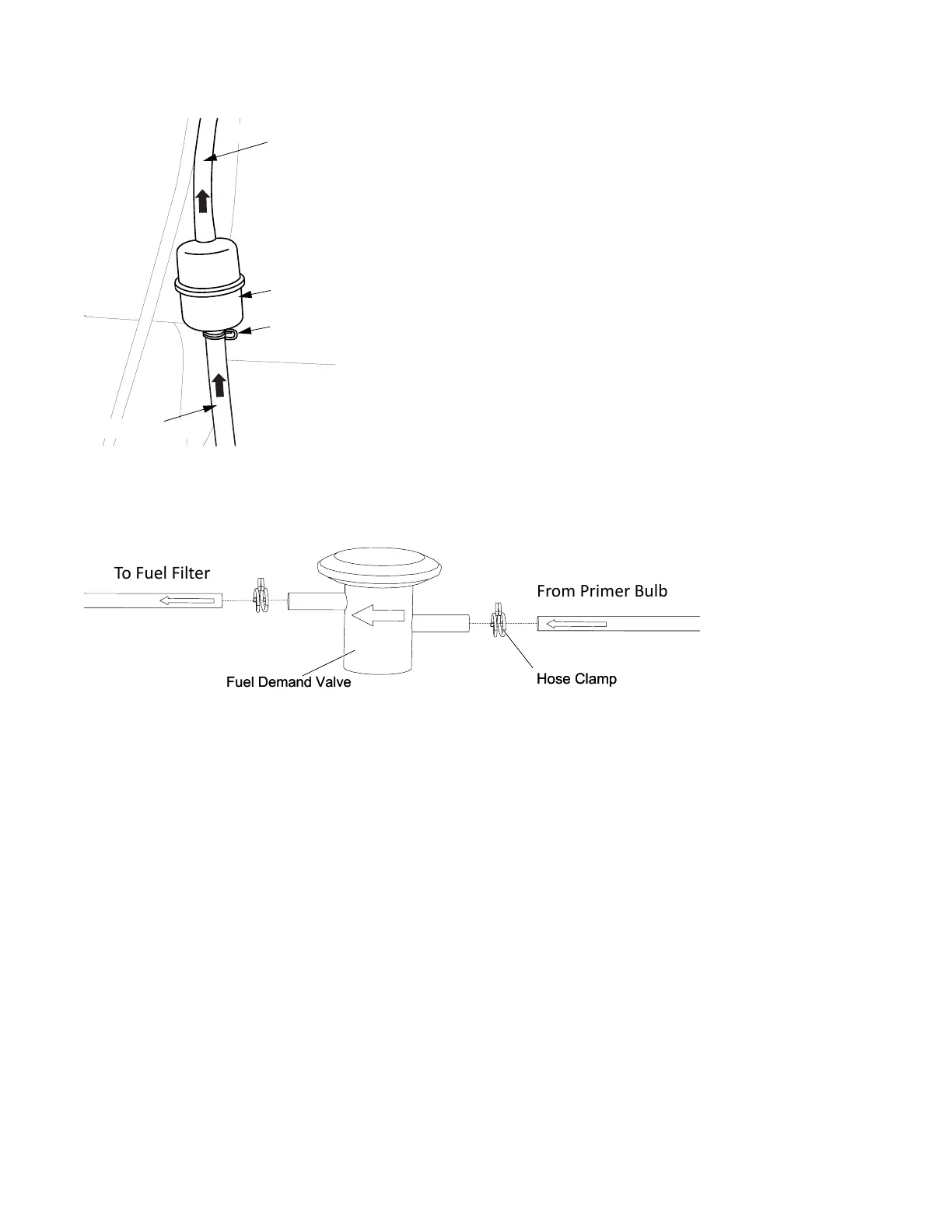

Figure 71. Fuel Filter
From Primer Bulb
To Gas Engine
Fuel Filter
Clamp
3. If equipped with an low emission tank kit, install a fuel demand valve. Cut the fuel line between the primer
bulb and the fuel filter. Insert the fuel demand valve into the fuel line with hose clamps (see Figure 72).
Figure 72. Fuel Demand Valve
4. Connect the fuel line to the engine using hose clamp.
5. Secure the fuel hoses with zip ties.
After installation check
Note
Before checking the primer bulb, please proceed and complete all the assemblies first and after the
conveyor is completely assembled, place finishing zip-ties on all fuel hoses to ensure all lines are snug in
place. Also zip-tie the gearbox breather to the fuel hose above the fuel filter.
1. Prime the fuel system with the primer bulb until fuel is seen in the fuel filter.
2. Run the machine and check all connections for any leaks or loose fitting.
Important
Do not start the engine on empty fuel, before pumping the primer bulb. Otherwise you risk wearing
out the battery, and may risk of engine failure.
