8210-00020 R1 139
5. If equipped with an low emission tank kit, install a fuel demand valve. Cut the fuel line between the fuel
pump and the fuel filter. Insert the fuel demand valve into the fuel line with hose clamps (see Figure 75).

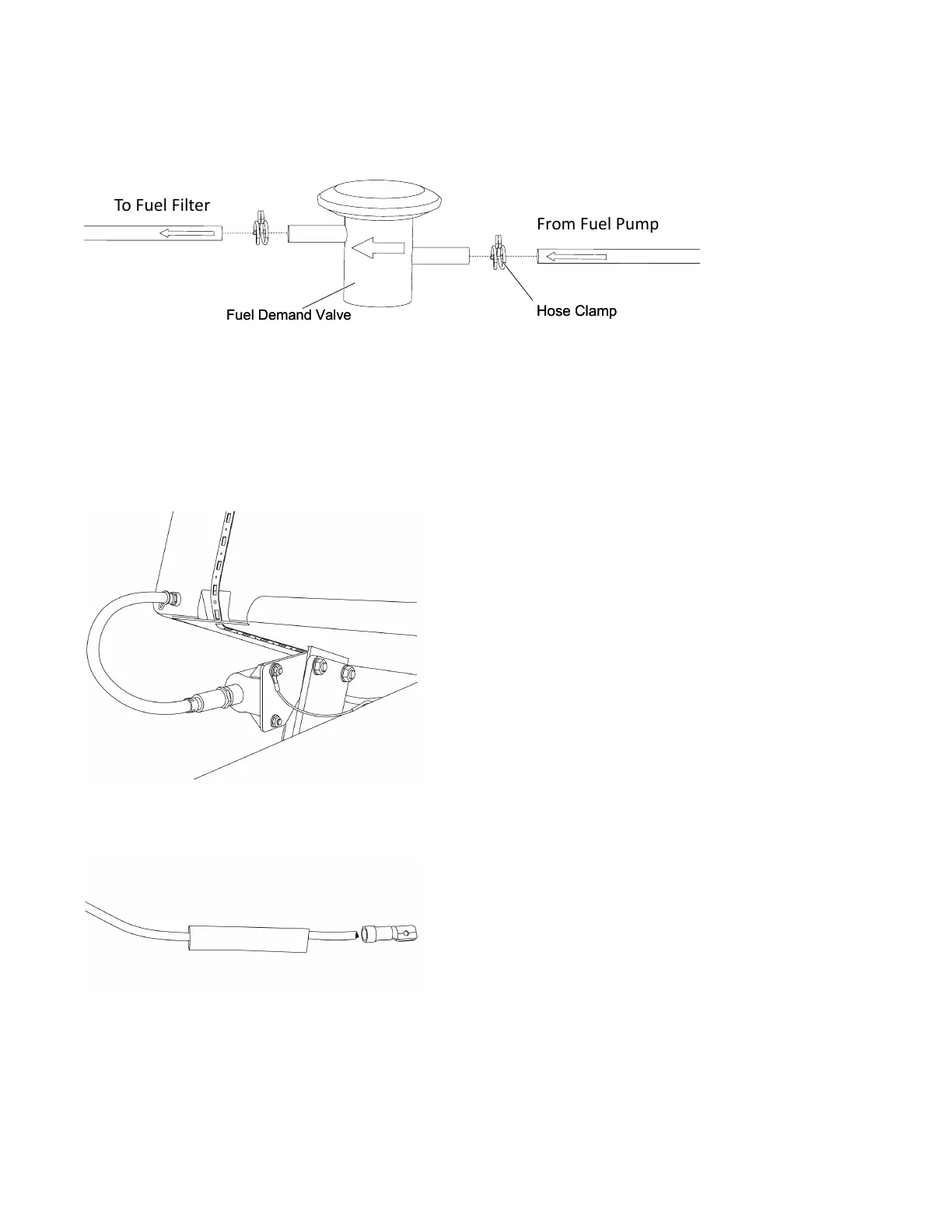

Figure 75. Fuel Demand Valve
6. Connect the fuel line to the engine using hose clamp.
7. Secure the fuel hoses with zip ties.
Fuel Pump Wiring
1. Attach the black wire (ground) to the bolt.Figure 76
Figure 76. Ground Wire
2. Strip the ends of the 18’ cable. Crimp on a male connector on one end as shown in Figure 77.
Figure 77. 18’ Cable
Parts: PARTK-15-46
3. Apply heat shrink tubing to the joint.
4. Attach the male connector to the yellow wire from the engine harness as shown in Figure 78.
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
To Next Page
