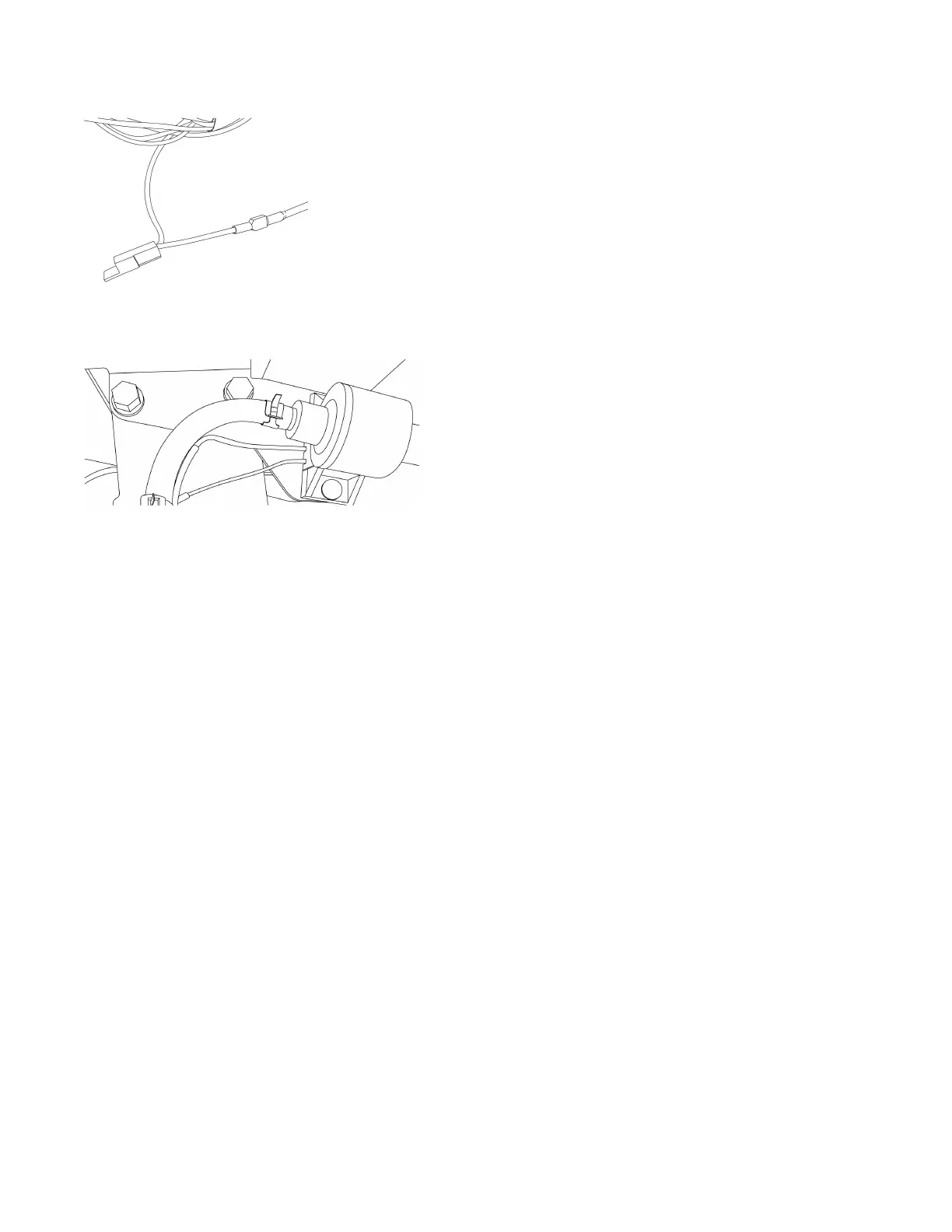

Figure 78. Fuel Pump Wire to Engine Harness
5. Attach the other end of the 18’ cable to the red wire at the pump end with a butt connector.
Figure 79. Installed Fuel Pump
After installation check
Note
Before checking the fuel pump, please proceed and complete all the assemblies first and after the
conveyor is completely assembled, place finishing zip-ties on all fuel hoses to ensure all lines are snug in
place. Also zip-tie the gearbox breather to the fuel hose above the fuel filter.
1. Run the machine.
2. Check all connections for any leaks or loose fitting.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
