Install the Cable Sheaves
1. Install the cable sheaves as shown in Figure 51.
Table 18. Components for Cable Sheaves Installation
Item
Description
1
1-1/4" Cable Sheave
2
Cable Sheave Capture
3
1/4" x 1-1/2" Hex Bolt (GR8)
4
1/4" Flat Washer
5
1/4" Nylon Locknut (GR8)
6
Bolt-on Cable Sheave Bracket
7
1/4" Carriage Bolt (GR5)
8
1/4" Hex Flange Nut

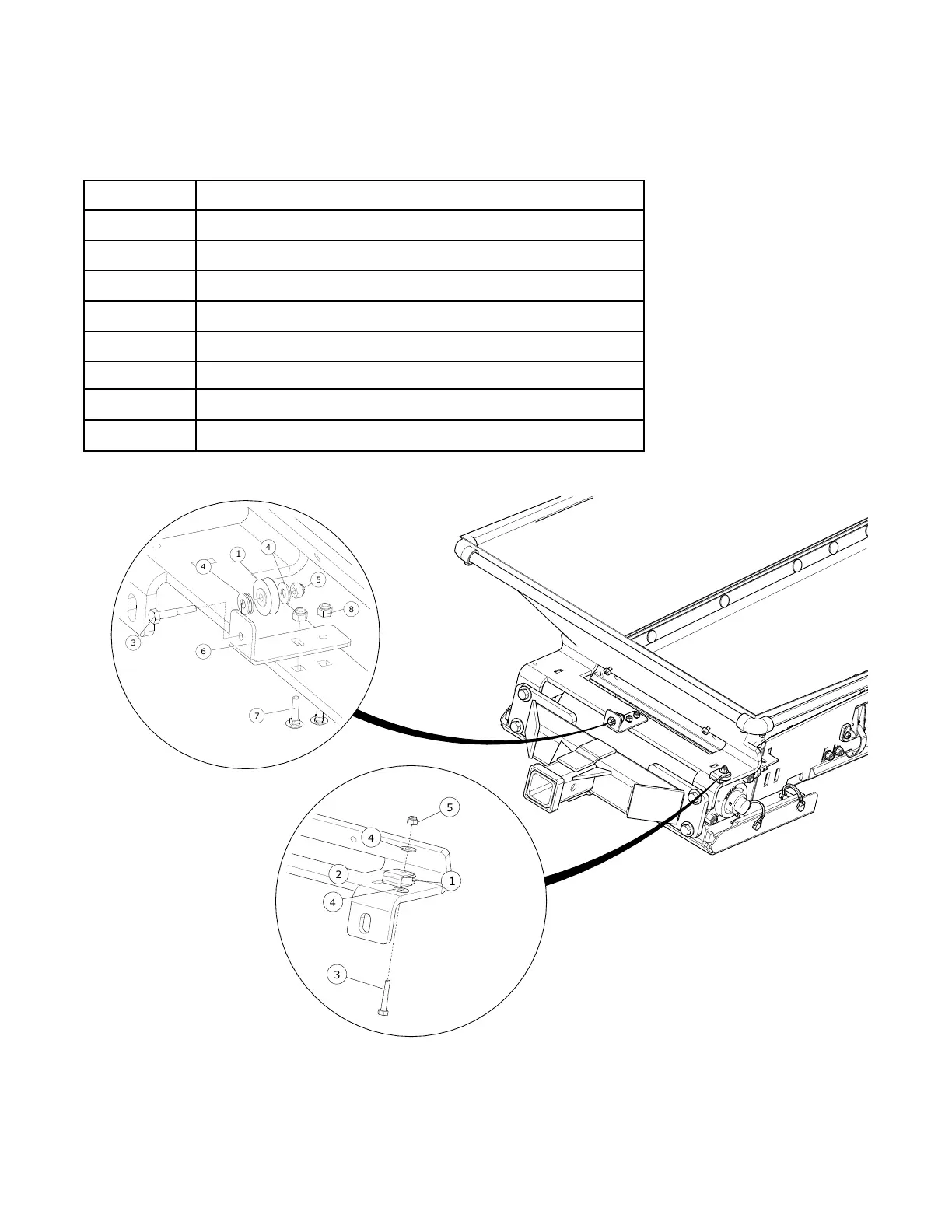

Figure 51. Installing the Cable Sheaves
7
5
6
4
1
4
3
3
1
5
4
2
4
8
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
