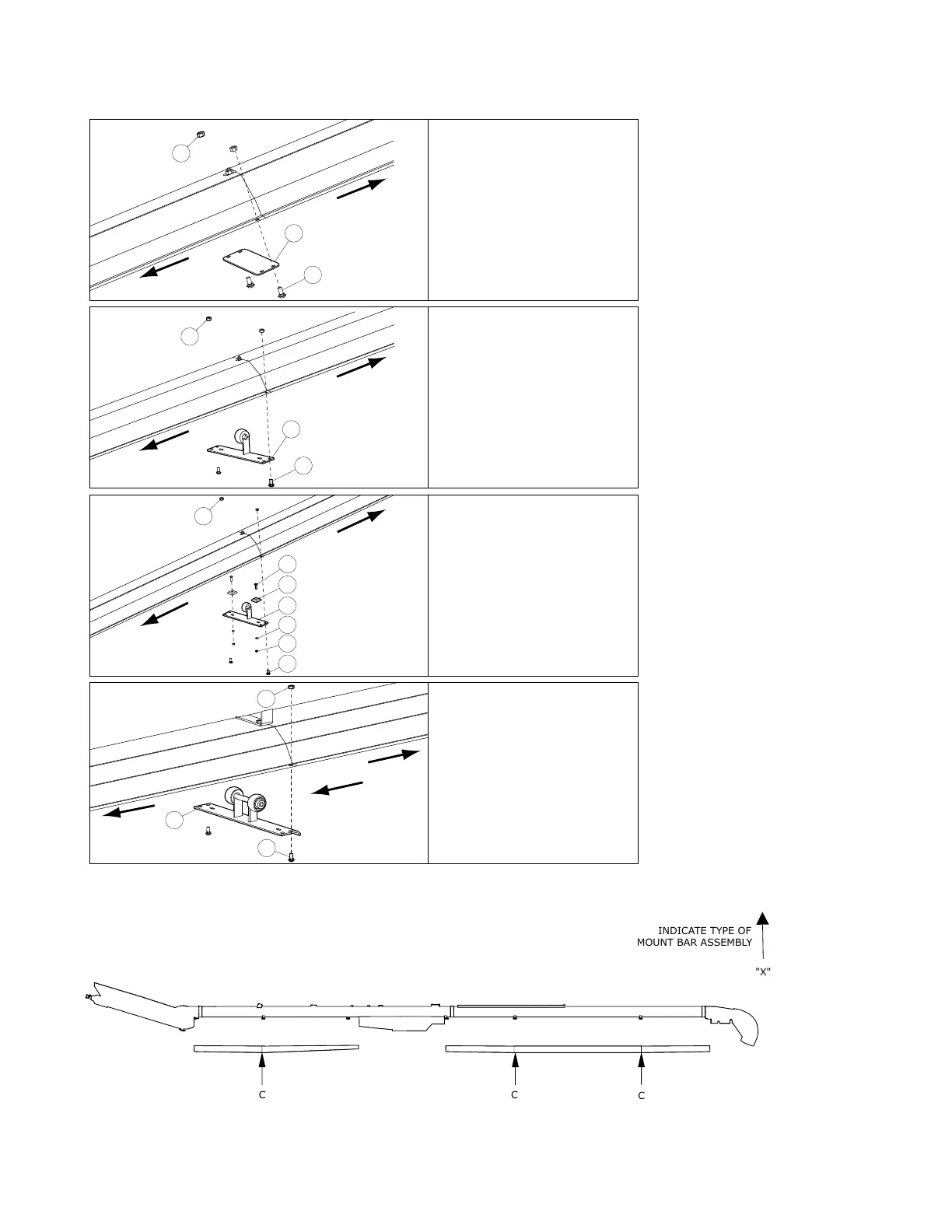

Figure 48. Types of Mount Bar Assemblies
5
1
2
4
4
5
5
6
3
2
8
7
4
5
2
4
Type A:
Mount Bar
(Cross Bar with No Roller)
Type B:
Mount Bar with Roller
Type C:
Mount Bar with Roller
and Guide Blocks
Type D:
Mount Bar
with Bi-Rollers
(Note: Slide belt guide blocks
toward outside of slotted
holes in roller mount bar once
installed on weather guard.)
SPOUT
HOPPER
SPOUT
SPOUT
SPOUT
BELT TRAVEL
DIRECTION
THROUGH
WEATHER GUARD
HOPPER
HOPPER
HOPPER
Figure 49. Mount Bar Schematic Diagram
INDICATE TYPE OF
MOUNT BAR ASSEMBLY
"X"
C
C
C
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
