AGI BCX3 1549 - Page 133

8210-00020 R1 133
Table 28. Gas Tank Components
Item
Description Quantity
4
36" Gear Clamp
2
6
45 L (12 gal) Gas Tank w/Cap Fitting
1
7
1/4" MPT x 1/4" Hose Barb
1
8
1/2" Hose Clamp
4
9
1/4" ID Fuel Line — 14' for over-mount drive, 20' for under-
mount drive
1

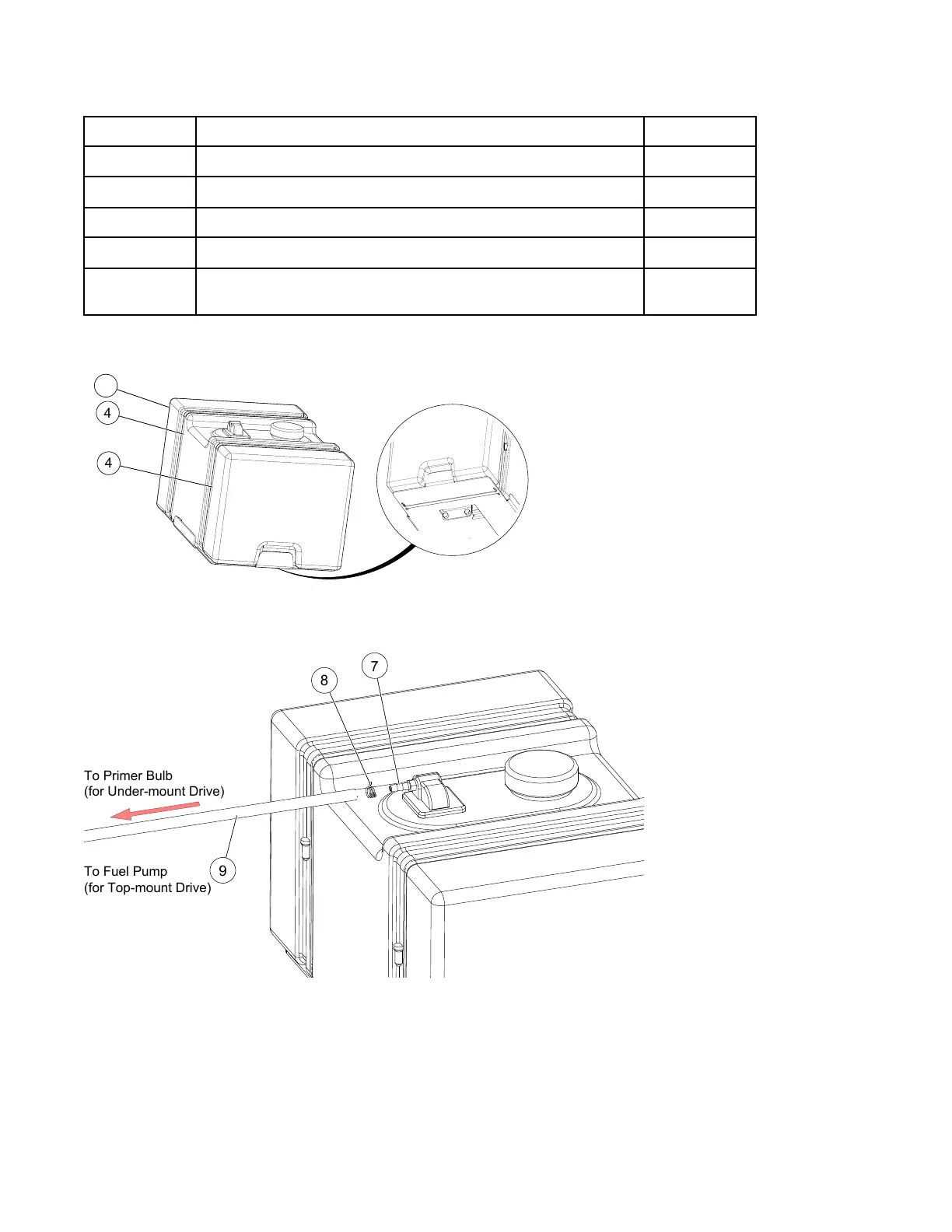

Figure 66. Gas Tank
Figure 67. Fuel Line
9
7
8
9
7
8
To Primer Bulb
(for Under-mount Drive)
To Fuel Pump
(for Top-mount Drive)
4
6
4
4
6
4
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
