8210-00020 R1 53

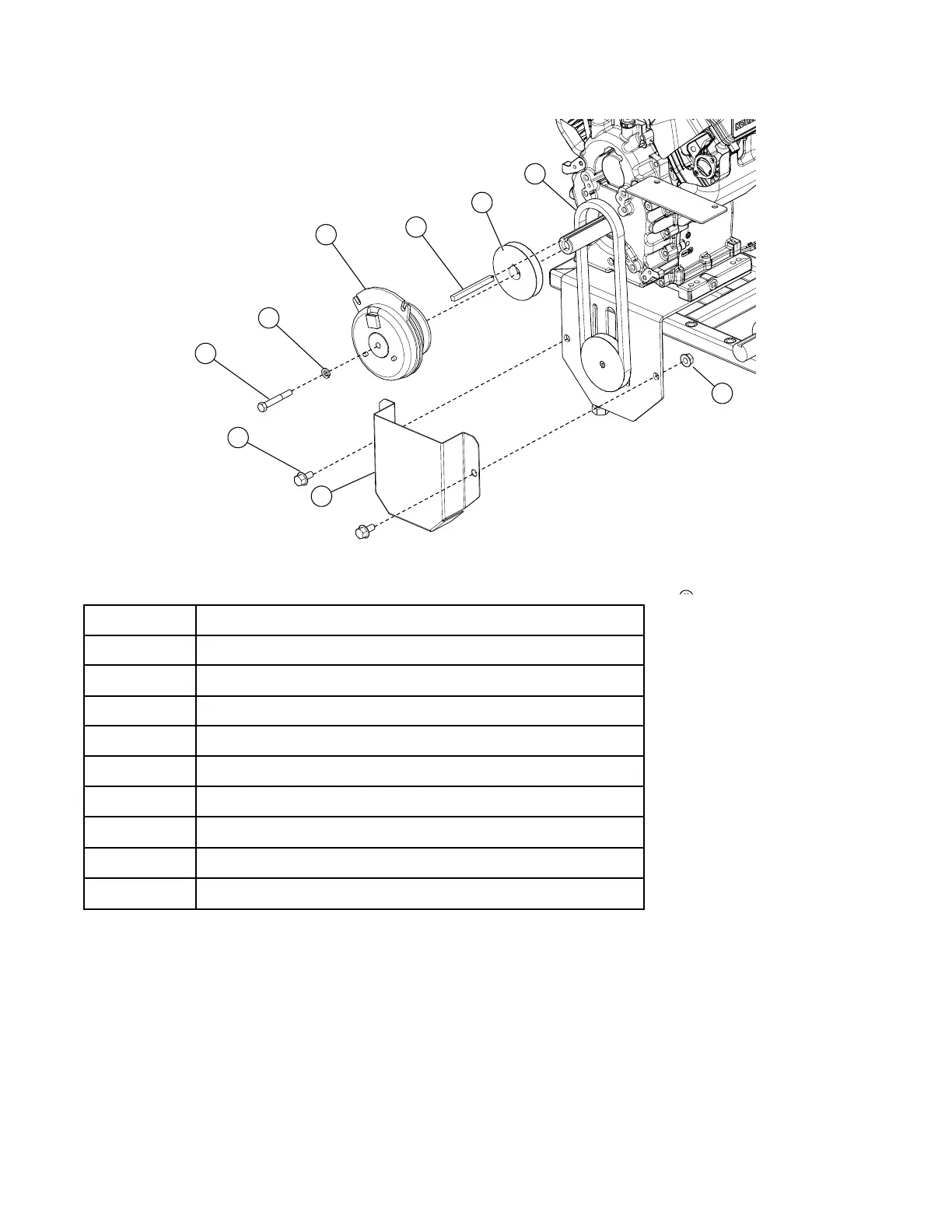

Install the Clutch and Hydraulic Pump Guard
Item
Description
1
Hydraulic Pump Guard
2
1/2" X 1" Hex Flange Bolt
3
7/16" X 3" Hex Bolt
4
7/16" Lock Washer
5
Clutch Assembly
6
3/8" X 4-3/8" Key
7
4-1/2" X 1-1/8" Pulley
8
Hydraulic Pump Belt (BX31)
9
1/2" Flange Nut
Hardware: PARTK-15-44
Note
Align the pulleys using a straight edge before installing the belt. Tighten the set screws after the pulleys
are aligned.. Use the tap bolt from the Section – Install the Hydraulic Pump on page 52to adjust the
distance between the pulleys for correct belt tension.
6
9
8
7
1
2
5
4
3
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
