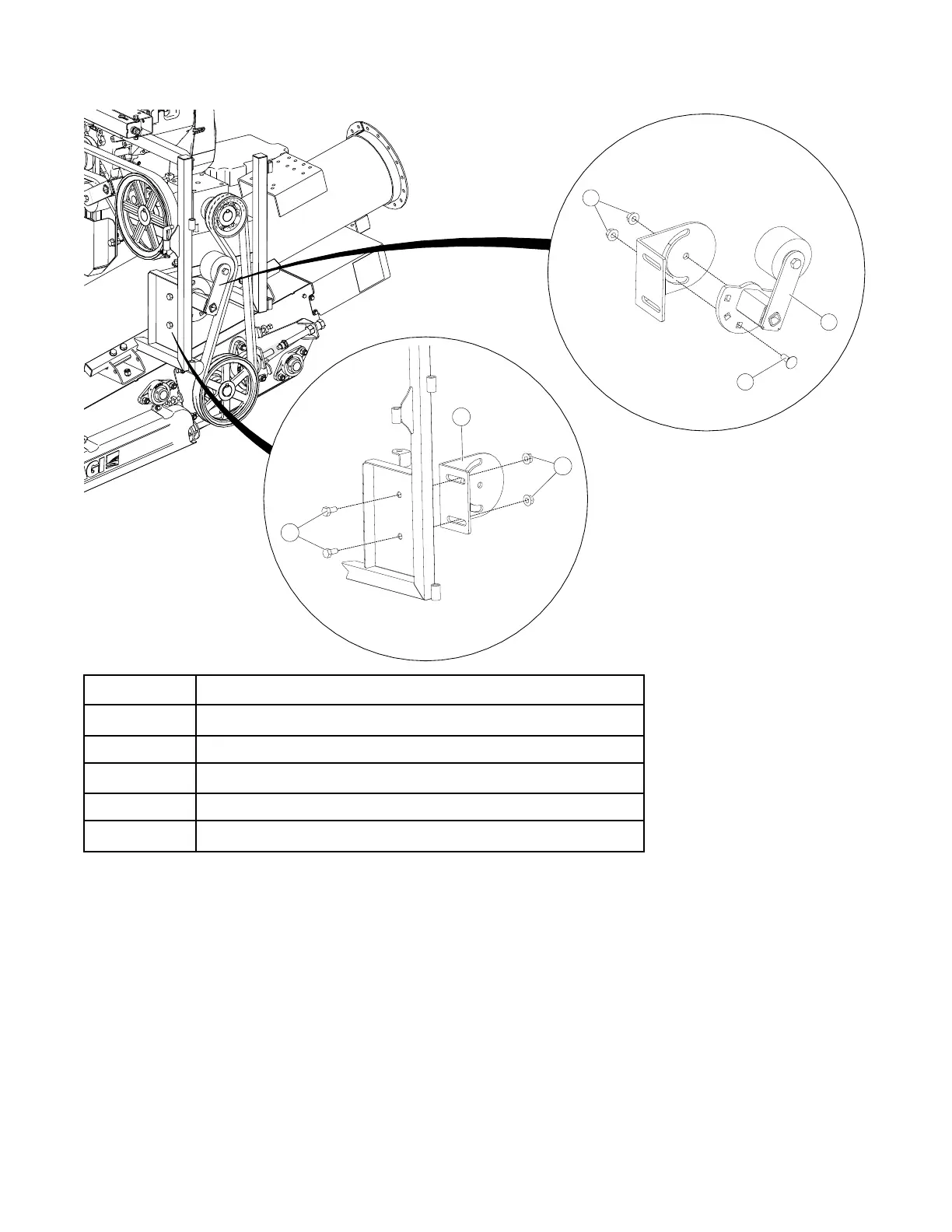

Installing the Torsion Idler
Item
Description
1
1/2" Hex Flange Nut
2
Torsion Idler Arm
3
1/2" X 1–1/4" Carriage Bolt (GR 5)
4
Torsion Idler Mount Plate
5
1/2" X 1" Hex Bolt (GR 8)
Hardware: 15–133
Note
Tighten the gearbox and motor bolts before using the torsion idlers to tension the drive belts.
1
4
5
1
2
3
