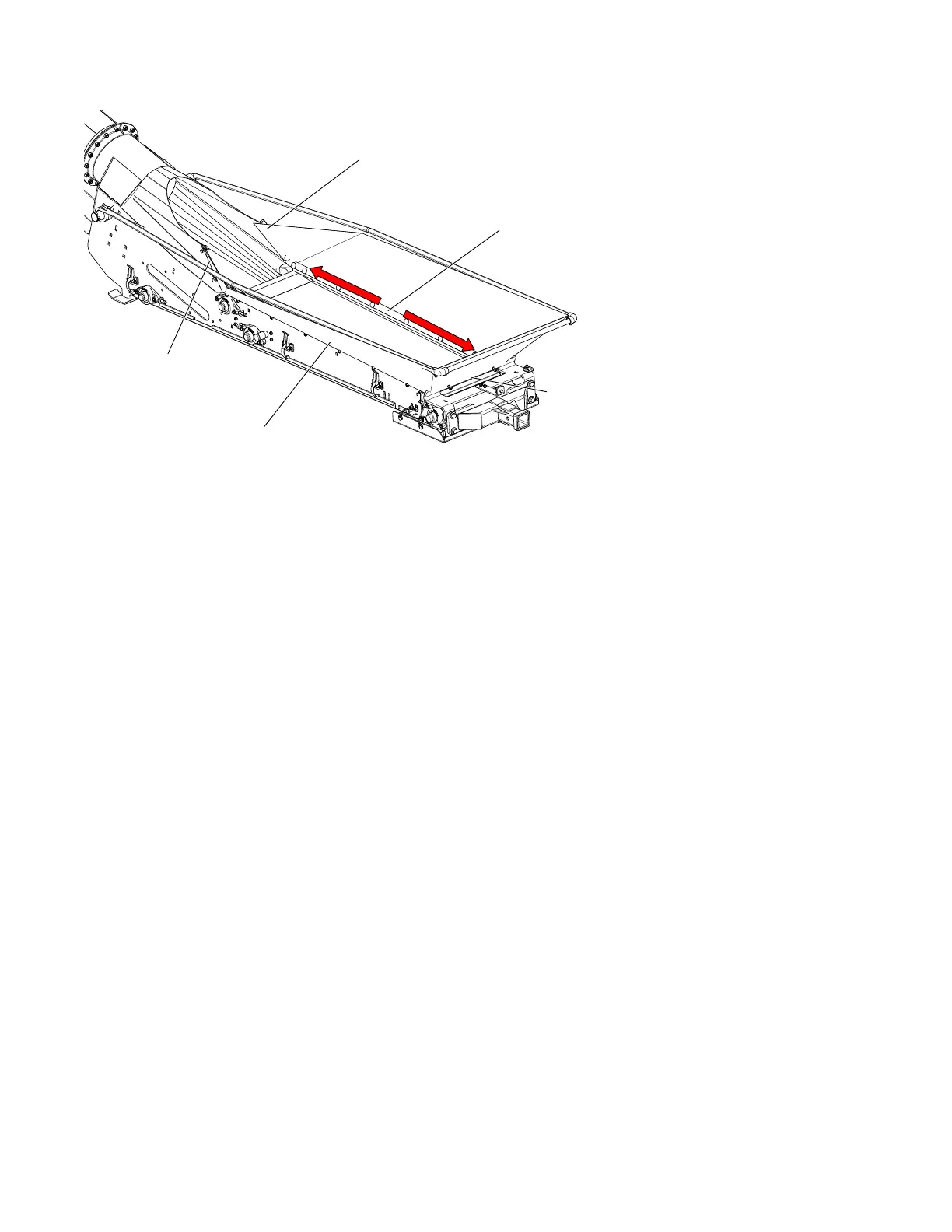

Fastening the Hopper Cloth: Bolting Order Overview
Note
This image is a reference for sections Section 3.23.6 – Secure the Front Lower Hopper Cloth Frame to
the Hopper on page 106 to Section 3.23.8 – Tighten the Lower Hopper Cloth Frame Bolts on page 110.
3. 1st Side Upright
5. 2nd Side Upright
2. 1st Side
Work outwards from the middle
4. 2nd Side
Work outwards from the middle
1. Front
