4Installation
Hardware Installation
2D-LC User Guide 80
The driver-based 2D-LC Solution allows only certain valves to be configured as
diverter valves which can be used for example as an effective desalting tool.
A list of supported valves can be found in Table 8 on page 66
More information is available in the following sections:
• “Method Parameters” on page 125
• “Run the System” on page 192

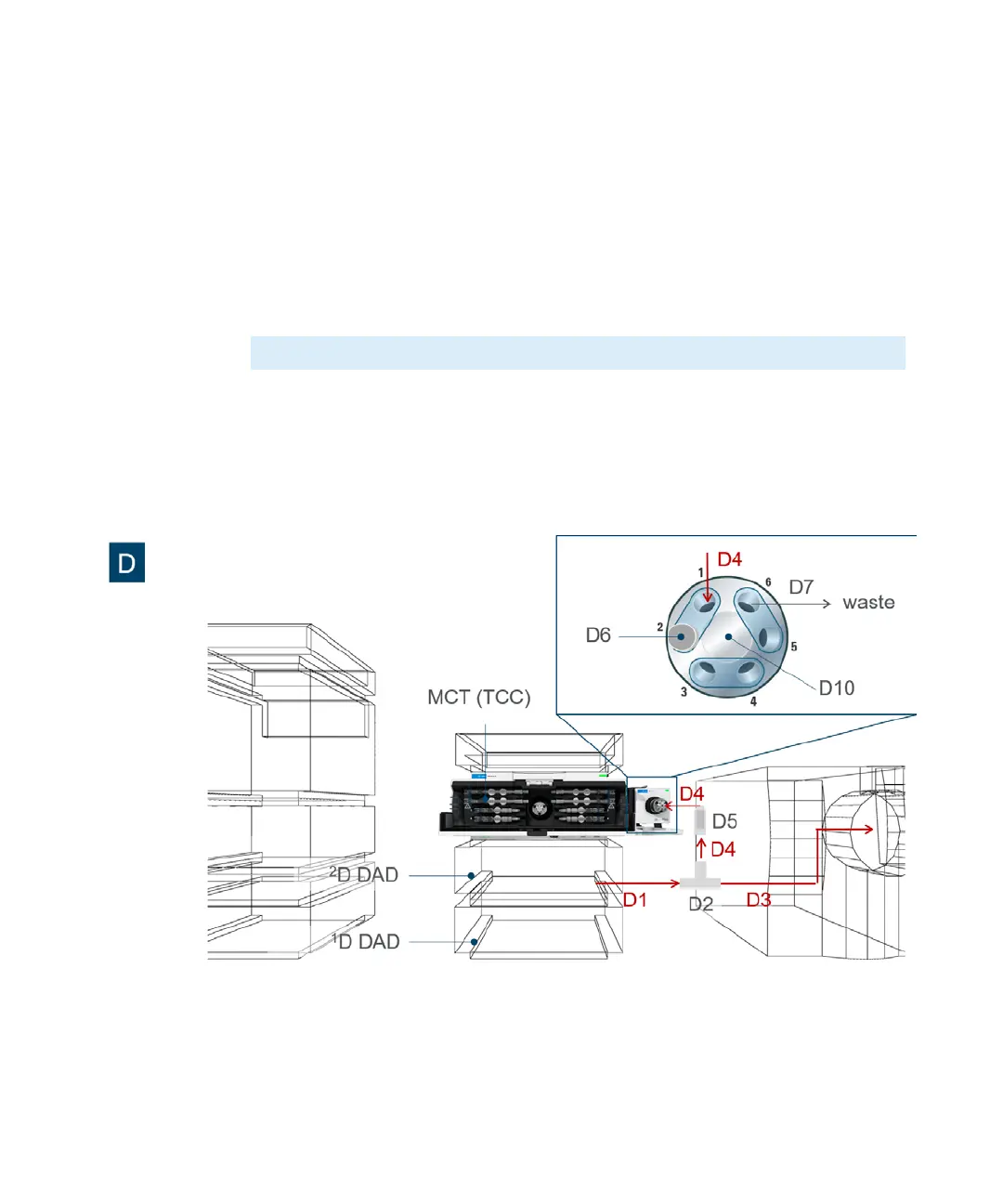

Figure 37 Setup D. Recommended setup of a MS diverter valve.
Item p/n Description
1 G4231A 2pos/6port valve head, 800 bar
2 G4231C 2pos/6port valve head, 1300 bar
3 G4232C 2pos/10port valve head, 800 bar
4 G4232D 2pos/10port valve head, 1300 bar
