4Installation
Hardware Installation
2D-LC User Guide 82

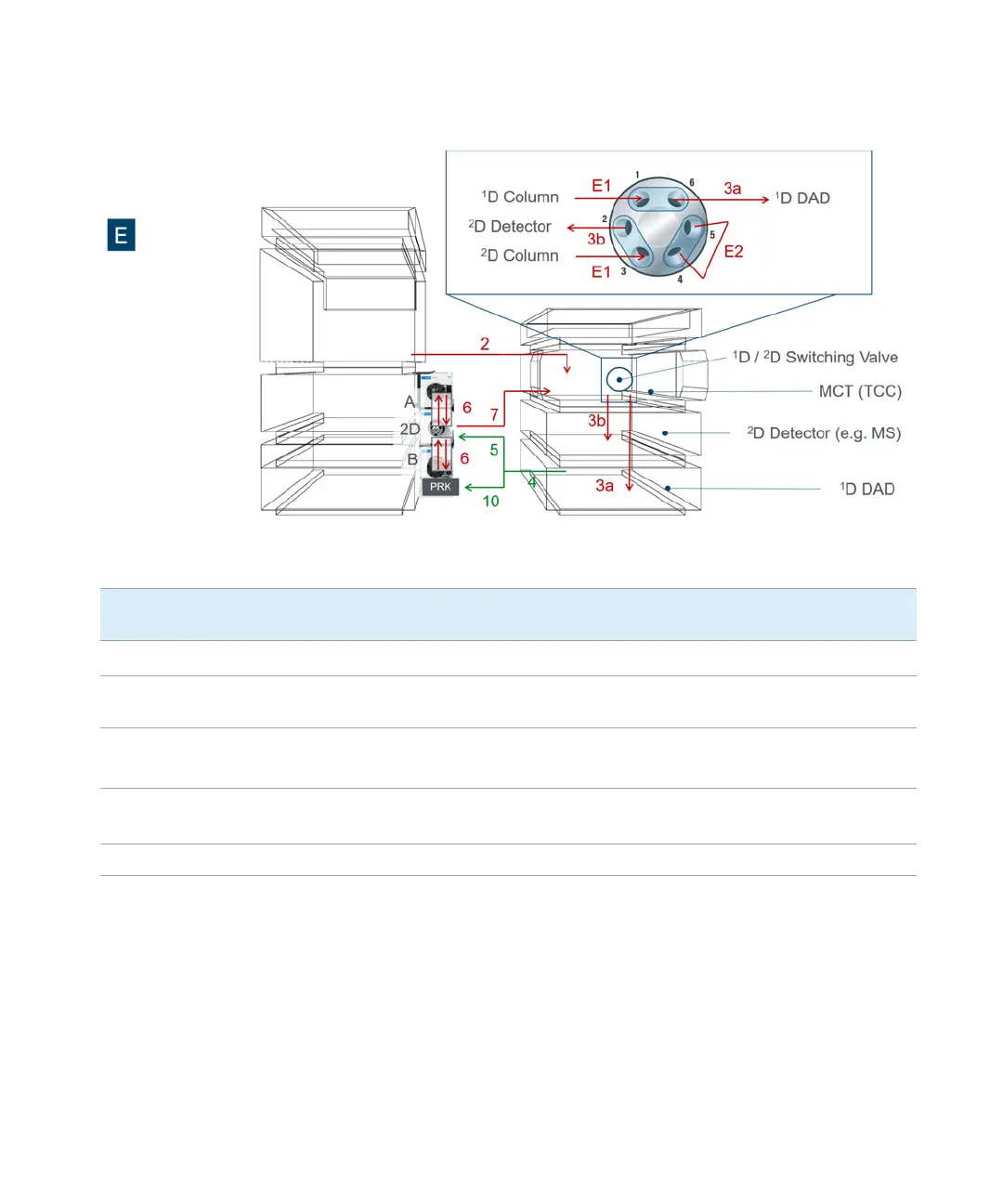

Figure 38 Setup E. Recommended setup for the
1
D/
2
D switching valve.
Number of
Capillary
# Connection L x ID [mm] P/N Description
3a 1
MCT / TCC to
1
D DAD
400 x 0.12 5500-1251 Capillary ST 0.12x400 SL/SL
81
1
D MCT / TCC to
1
D DAD
280 x 0.12 5067-4651 Capillary ST 0.12x280
SL/SX
E1 2
1
D column to
1
D/
2
D Switching Valve (1);
2
D column to
1
D/
2
D Switching Valve (3)
120 x 0.12 5067-4652 Capillary ST 0.12x 120
SX/SX
E2 1
Connection capillary
1
D/
2
D Switching
Valve (4) to (5)
90 x 0.12 5067-4649 Capillary ST 0.12x90 SX/S
For all other capillaries / connections, please refer to Figure 31 on page 73, Figure 32 on page 74, and Figure 33 on page 75.
