3-38 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Functions
Output Sequence
Example
Output sequence in the following conditions is shown in Figure 3-5.
• Units available: SMU1 to SMU 4, VSU1 to VSU2.
• Units disabled: SMU4 and VSU2.
• Output sequence: No change from the default setting.

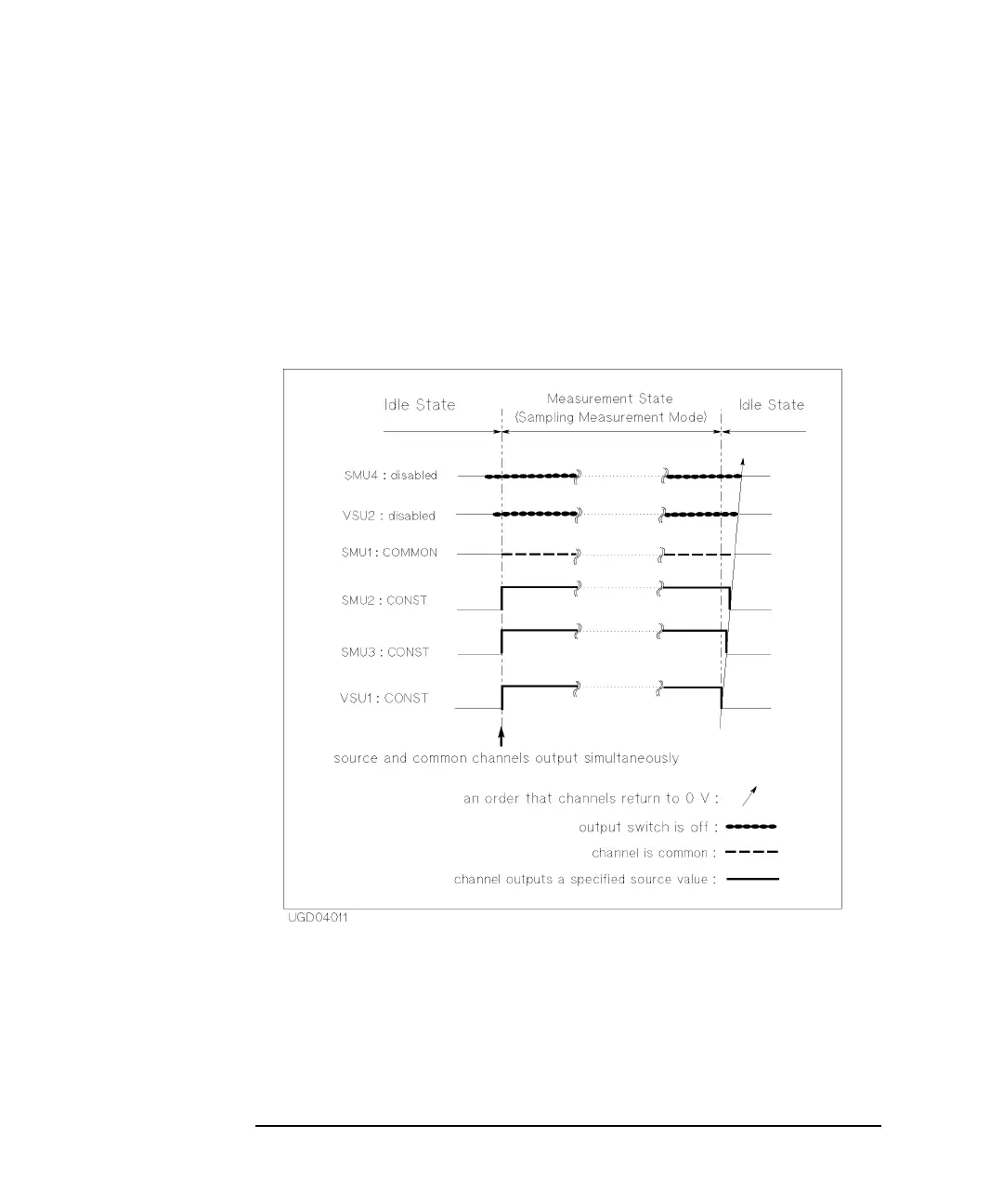

Figure 3-5 Default Output Sequence Example for the Simultaneous Mode
