6. Set the center frequency to the computed value:
Press [
Frequency
], [center], 6 [MHz)].
Note If your pilot is on the high (right) side of the spectrum, you must configure the
analyzer to demodulate a high-side pilot. For further details, see the next task:
‘’To demodulate a VSB signal.’’

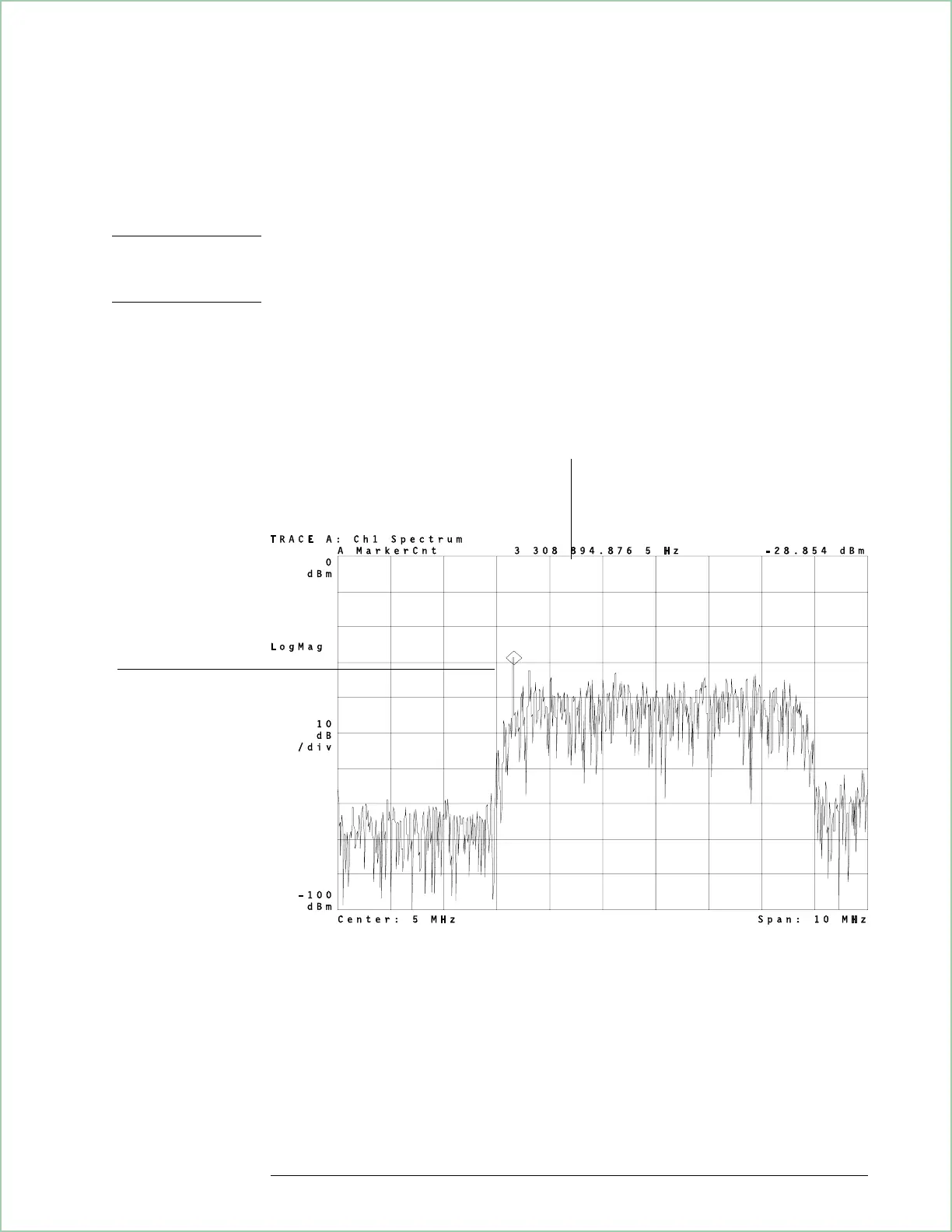

8 VSB Signal With Low-Side Pilot
Frequency counter readout. In this
example, this is the frequency of the pilot
signal.
In this example, the pilot is
on the low (left) side of the
spectrum.
Using Video Demodulation
(Opt. AYH)
9 - 5
