Measurement Flow

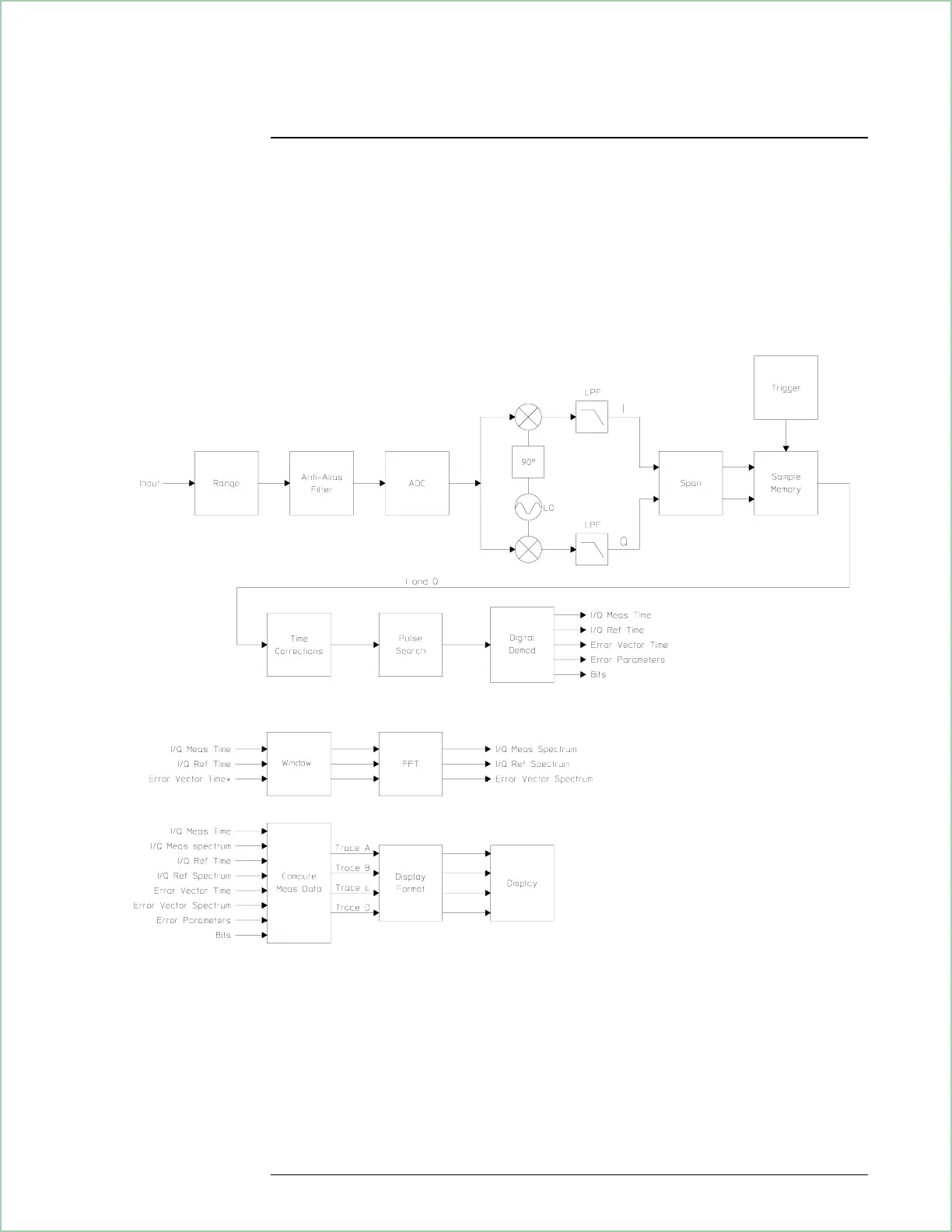

General block diagram

The Video Demodulation instrument mode uses the analyzers digital demodulator

to demodulate video signals. The following block diagram shows the location of

the digital demodulator in the analyzer’s block diagram.

Location of Digital Demodulator in Analyzer’s Block Diagram

Video Demodulation Concepts (Opt. AYH)

23 - 3
