The Analyzer at a Glance

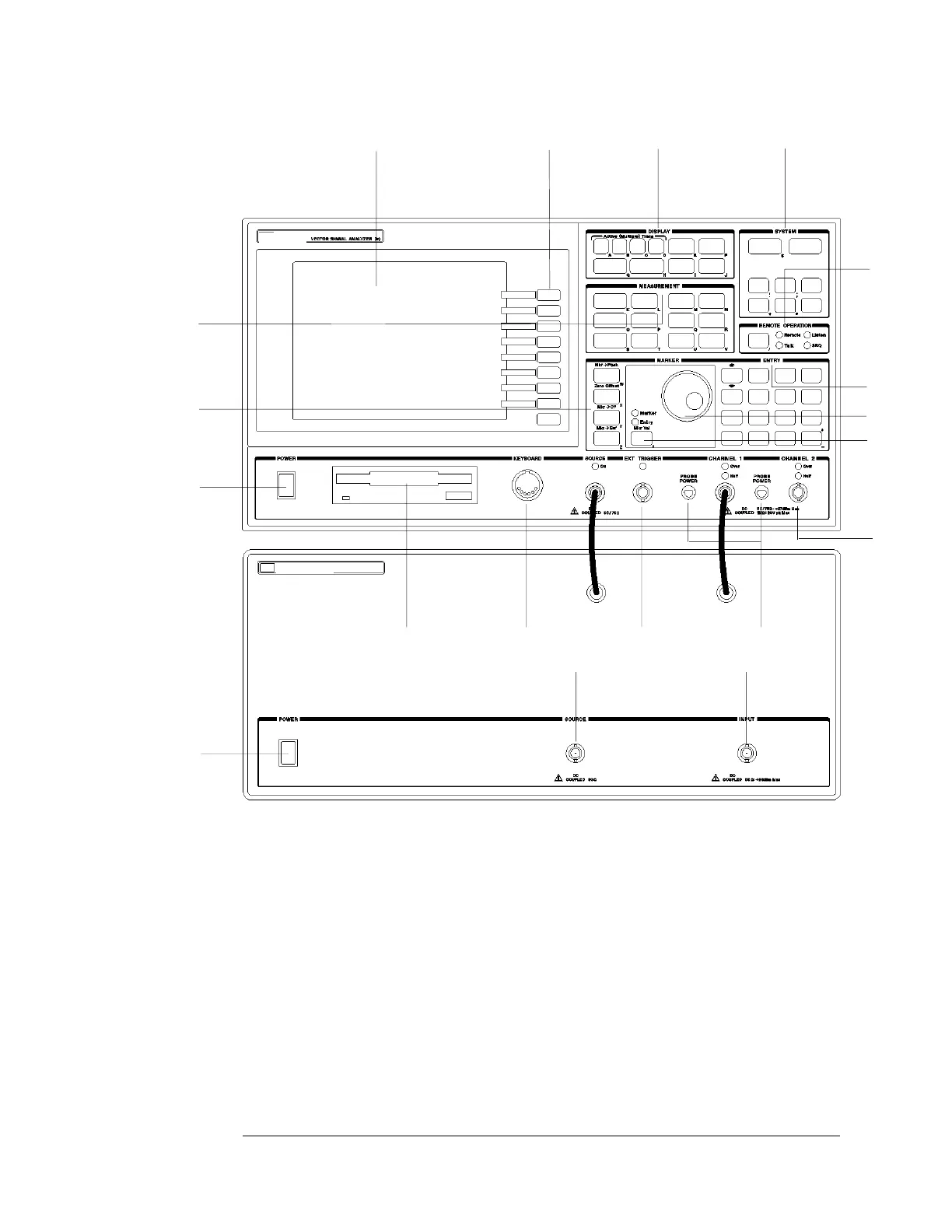

This illustration shows the Agilent 89441A Vector Signal Analyzer, which consists of

two components: the IF section on top and the RF section on bottom. The IF section is

the Agilent 89410A; the RF section is the Agilent 89431A. Note that you can order the

89431A to convert an 89410A into an 89441A (see Options and Accessories later in this

manual).
