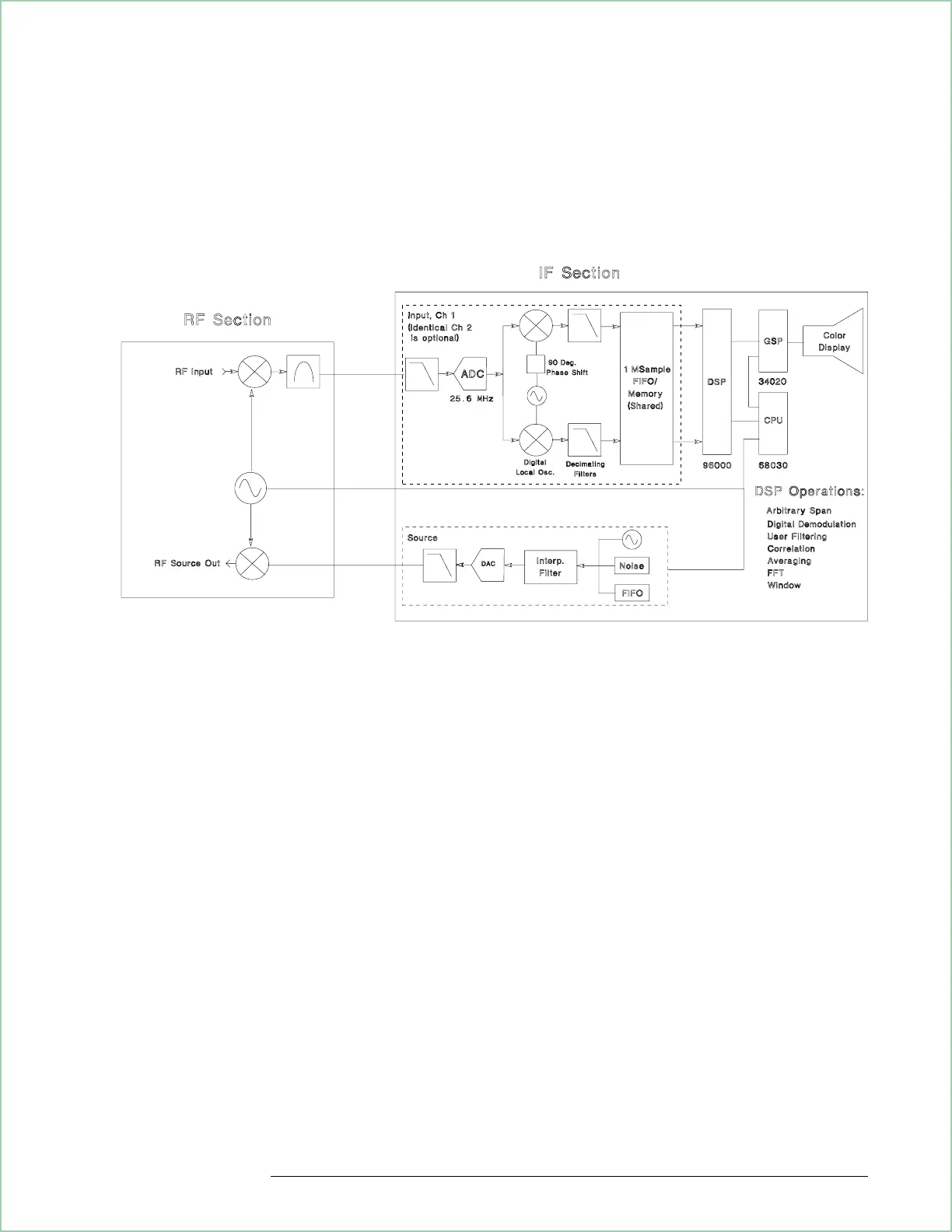

Signal flow diagram

A more complete block diagram shows the complex local oscillator which allows the

analyzer to use complex time analysis for phase, demodulation, and other time-related

measurements. The 89441A consists of the RF section (bottom box) and IF section (top

box). The IF section is the 89410A.

What Makes this Analyzer Different?

18 - 11
